WHY CHOOSE CHEZY BOTTLE FLOOR TRAP?

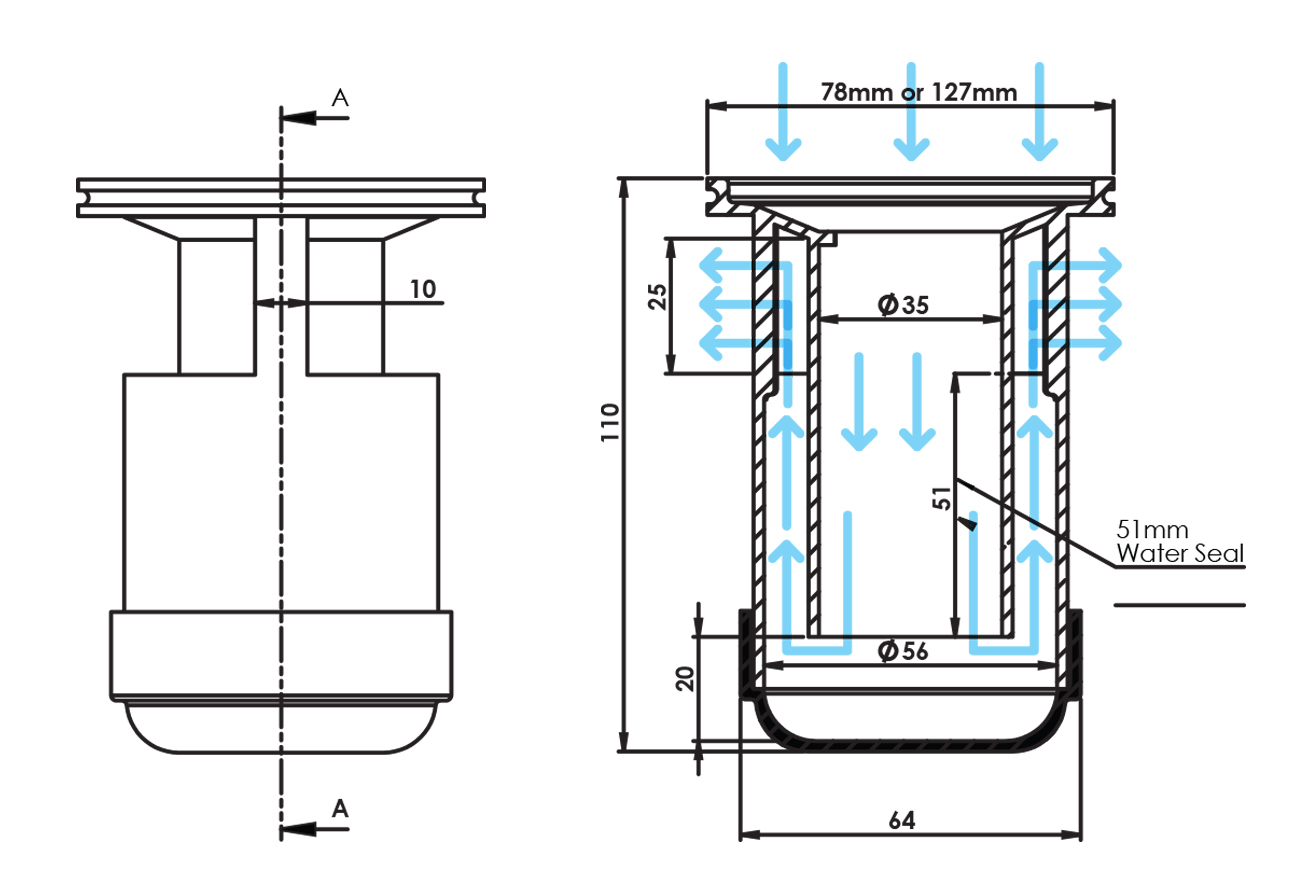

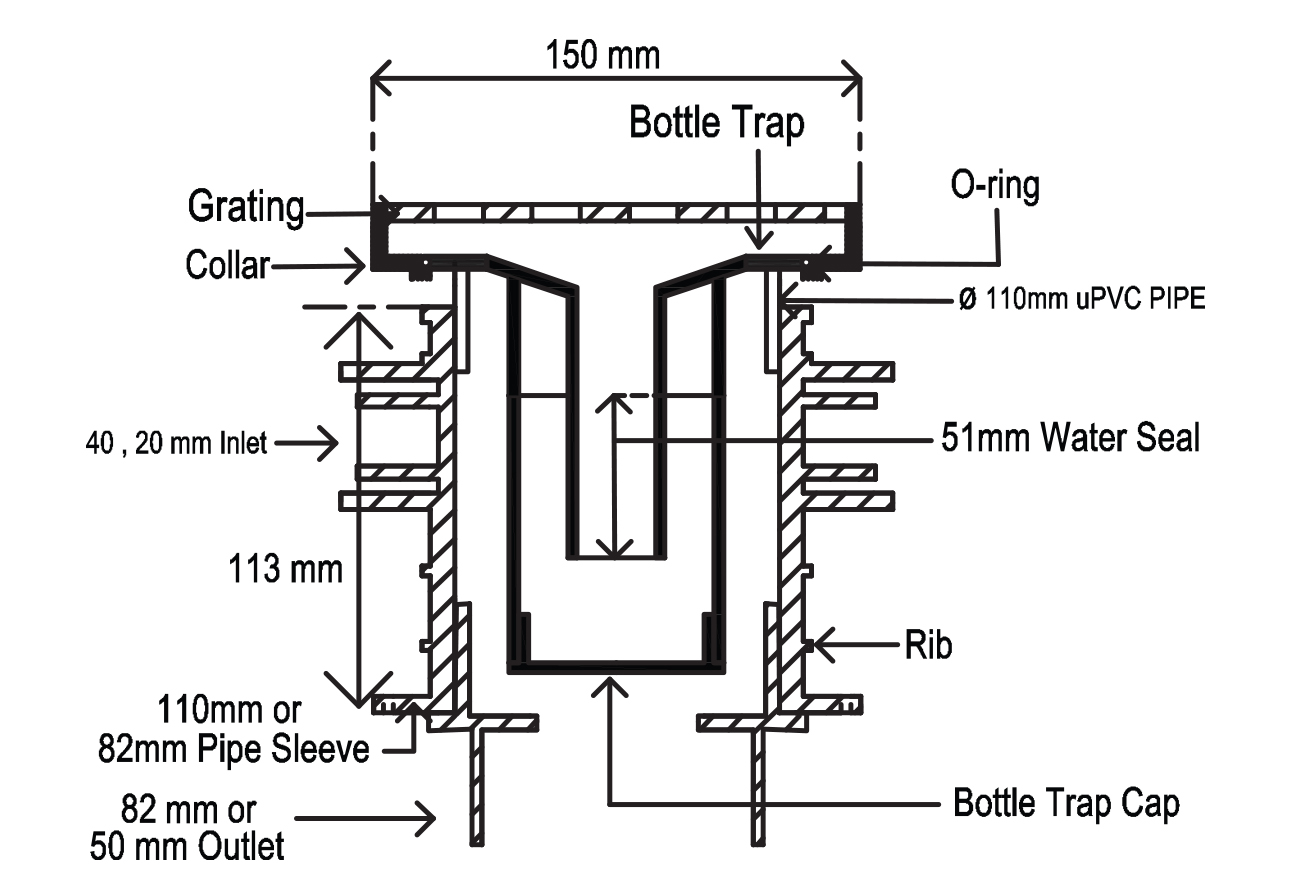

The Chezy Bottle design floor trap can be used with 150mm (6-inch) collar and gratings and
100mm (4-inch) collar and grating designs.

For the 150mm gratings a 100mm (4-inch) trap body is used. For the 100mm (4-inch) gratings,
a 82mm (3-inch) body is used for the bottle trap.

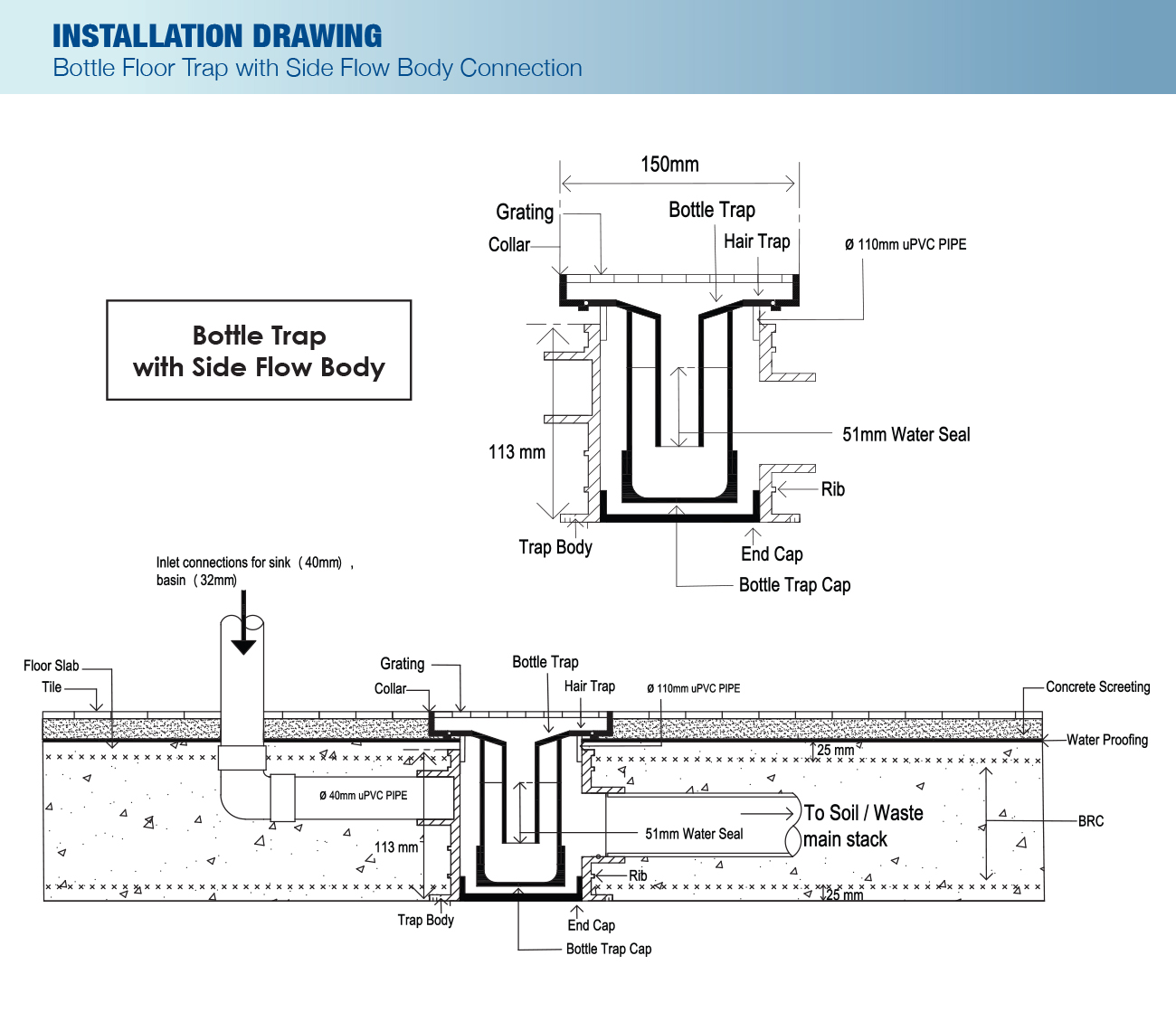

This economical floor trap can be used as a side flow floor trap, when the outlet is 50mm (2-inch)

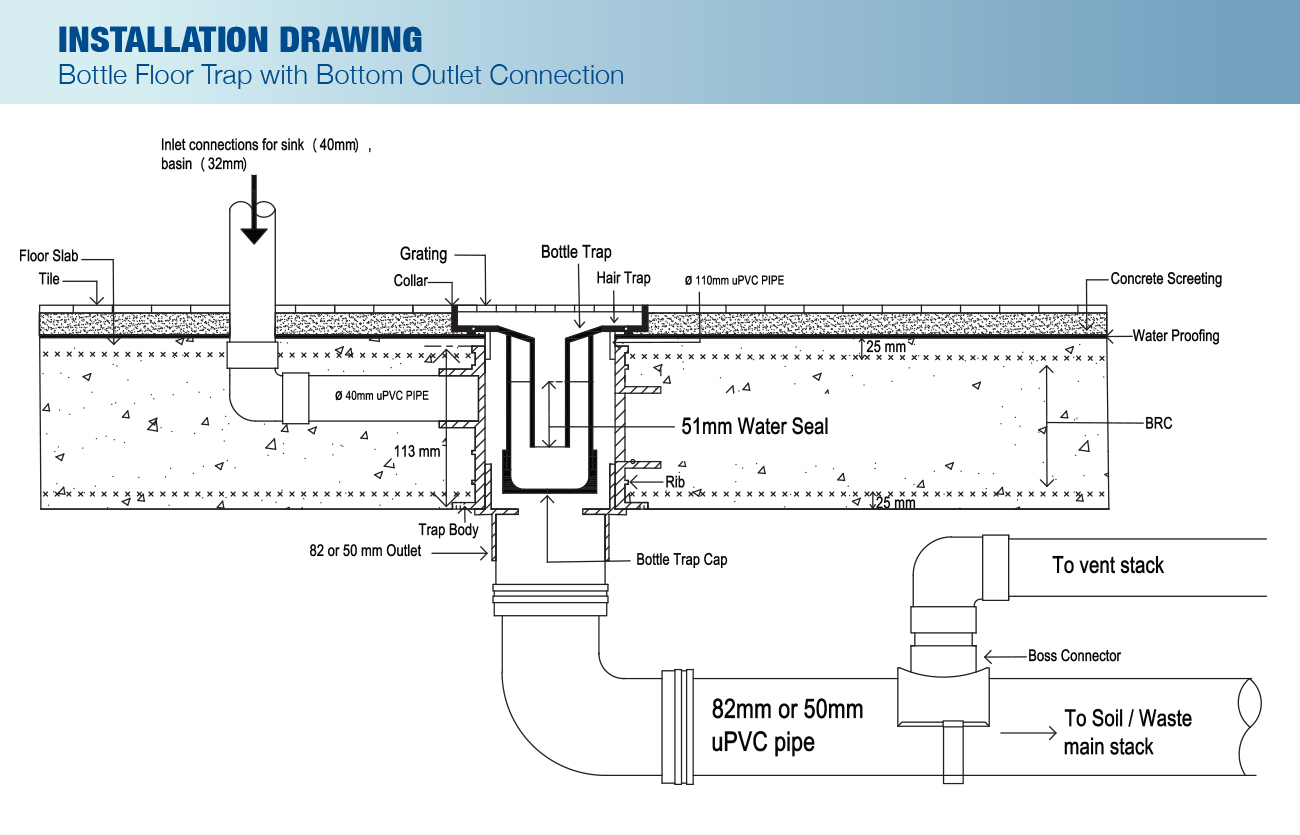

and the outlet pipe is embedded in the floor slab. If it is used as a bottom outlet, it allows you to use a
82mm (3-inch) or 50mm (2-inch) outlet at the bottom.

The flow rate for this bottle floor trap design is in excess of 52 litres/min,
which is more than sufficient for your use.

Disadvantage for this bottle floor trap design is that sanitary ware that is connected to this
bottle floor trap design must have their own traps, that is kitchen sink, basin, etc must have their
own traps. The traps of these outlets can be connected to the body.
