CHEZY CONVENTIONAL FLOOR TRAP
-
FEATURES
WHY CHOOSE CHEZY CONVENTIONAL FLOOR TRAP?
The Chezy conventional floor trap has flow rates in excess of 80 litres/min.
These conventional floor traps are placed below the floor slab and can have 3 connections to allow for
basin, kitchen sink, long bath and air-conditioning water discharge pipes.
According to British and European standards, the water seal must be a minimum of 50mm. -
ADVANTAGES & DISADVANTAGES
THE ADVANTAGES
This floor trap design are accessible from the bottom by unscrewing the cap at the bottom for
cleaning blockages and for rodding purposes.THE DISADVANTAGES
They cannot or are difficult to service from the top. This is esspecially dificult in
high rise buildings as owners in lower floors may not allow access for servicing of
the floor trap for the floor above. -

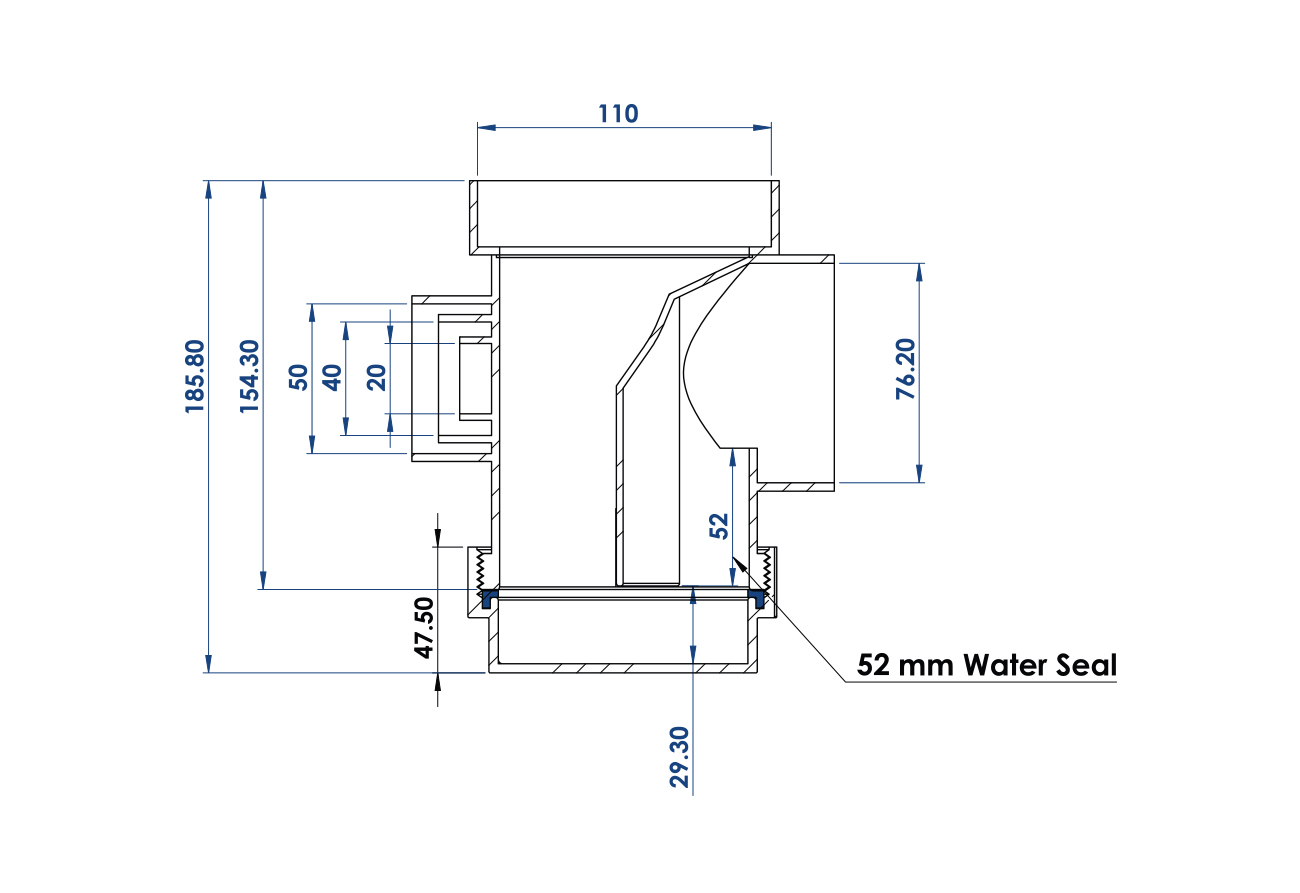

SIZE & DIMENSIONS
-

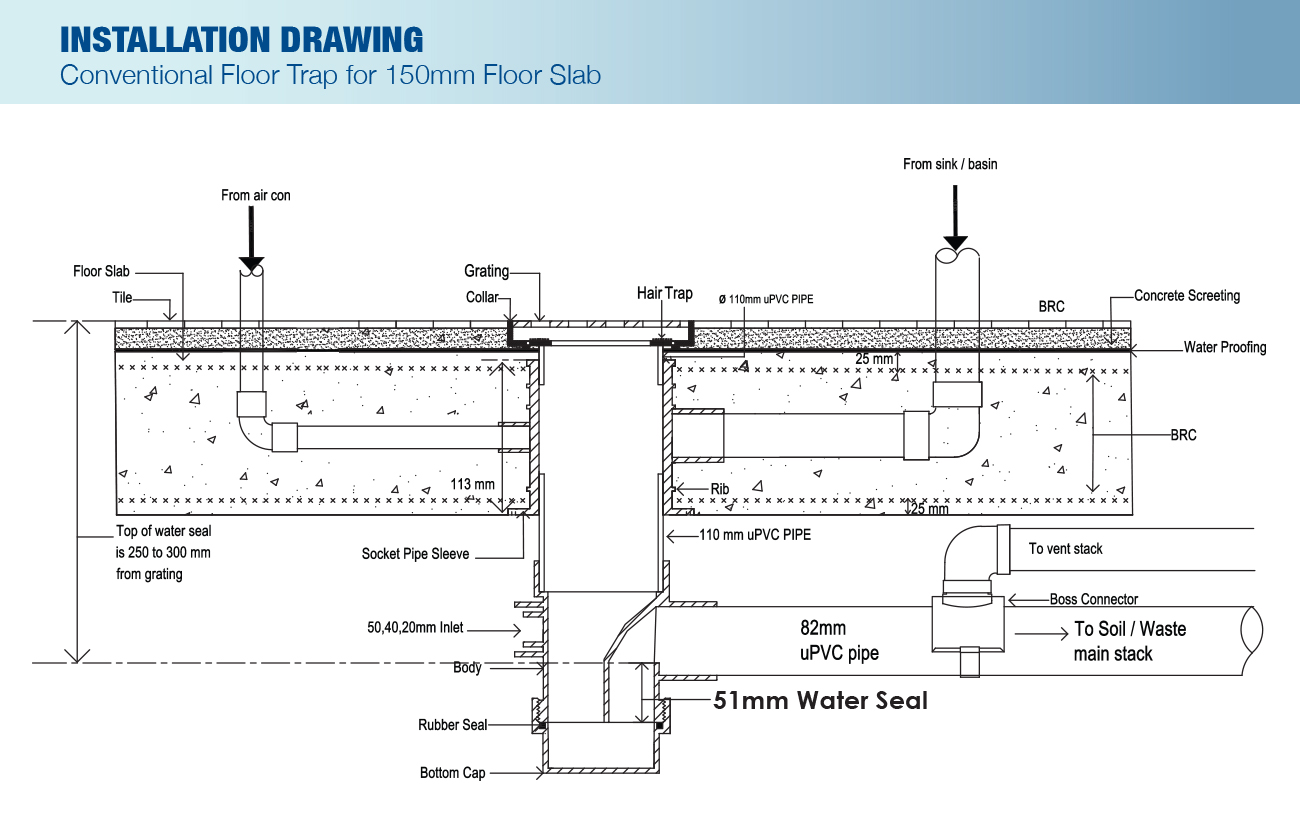

INSTALLATION DRAWING
