Patented Chezy Adaptor Stop Valve
Chezy Adaptor Stop Valves are designed for direct connection with PE100 PN16 HDPE rated pipes, cutting installation time and costs.
The usage of this stop valve allows for jointing directly to HDPE pipes without the use of MTA (Male Thread Adaptor), cutting labour time in half with just 2 joints instead of 4, while eliminating the need for Teflon/White tape and leakages at ΜΤΑ connections. Save time and money with CHEZY.
- Direct connection with 20mm, 25mm and 32mm HDPE pipes.
- Lower material cost.
- Fewer joints, lesser leak chances.
- Faster installation. (2 joints instead of traditional 4 joints by eliminating both MTA and white tape.)
- 50% faster and safer.
Patented Chezy Adaptor Stop Valve Installation Method

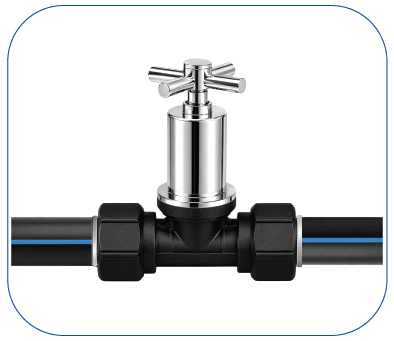

Step 1
Turn nut clockwise towards body till it stops.
Step 2
Push pipe over barbs onto the body until it stops.
Step 3
Hold the pipe by hand and turn the nut by hand anti-clockwise until it grips (bites) the outside of the pipe.

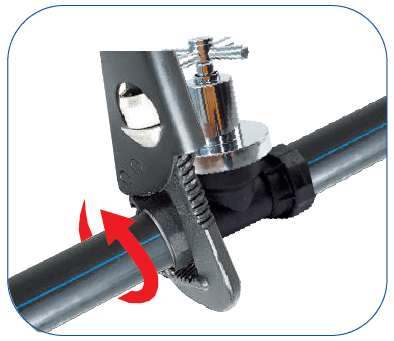

Step 4
Hold the pipe in place and lock the nut tight onto the pipe using a pipe wrench or spanner, to complete the joint. A white indicator becomes visible behind the nut when the nut is fully tightened, offering a “fool-proof” engineering solution for a quick and secure installation.
Adaptor Stop Valve Configurations
Plastic Sleeve Configurations
Plastic Black Sleeve (X-Handle / T-Handle)
| Model | Pipe Size (mm) | Dimension A | Dimension B | Dimension C |
|---|---|---|---|---|
| DN15 | 20 | 125 | 120 | 53 |
| DN20 | 25 | 126 | 132 | 54 |
| DN25 | 32 | 132 | 150 | 60 |

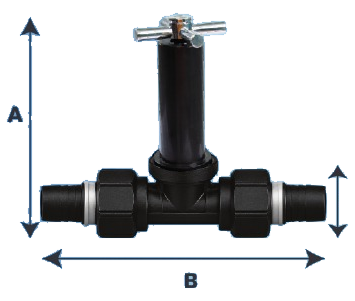

Plastic Black Sleeve Long (X-Handle / T-Handle)
| Model | Pipe Size (mm) | Dimension A | Dimension B | Dimension C |
|---|---|---|---|---|
| DN15 | 20 | 143 | 120 | 53 |
| DN20 | 25 | 144 | 132 | 54 |
| DN25 | 32 | 150 | 150 | 60 |
Plastic Chrome Sleeve (X-Handle / T-Handle)
| Model | Pipe Size (mm) | Dimension A | Dimension B | Dimension C |
|---|---|---|---|---|
| DN15 | 20 | 125 | 120 | 53 |
| DN20 | 25 | 126 | 132 | 54 |
| DN25 | 32 | 132 | 150 | 60 |

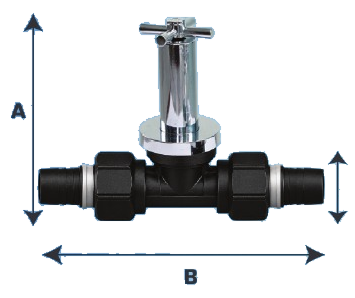

Plastic Chrome Sleeve Long (X-Handle / T-Handle)
| Model | Pipe Size (mm) | Dimension A | Dimension B | Dimension C |
|---|---|---|---|---|
| DN15 | 20 | 143 | 120 | 53 |
| DN20 | 25 | 144 | 132 | 54 |
| DN25 | 32 | 150 | 150 | 60 |
Metal Sleeve Configurations

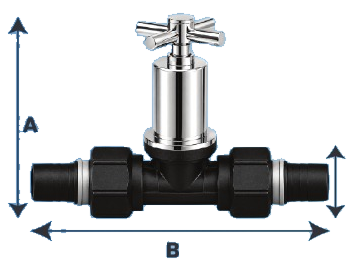

Metal Sleeve (X-Handle / T-Handle)
| Model | Pipe Size (mm) | Dimension A | Dimension B | Dimension C |
|---|---|---|---|---|
| DN15 | 20 | 125 | 120 | 53 |
| DN20 | 25 | 126 | 132 | 54 |
| DN25 | 32 | 132 | 150 | 60 |
Metal Sleeve Long (X-Handle / T-Handle)
| Model | Pipe Size (mm) | Dimension A | Dimension B | Dimension C |
|---|---|---|---|---|
| DN15 | 20 | 143 | 120 | 53 |
| DN20 | 25 | 144 | 132 | 54 |
| DN25 | 32 | 150 | 150 | 60 |
Alternative Handle Designs

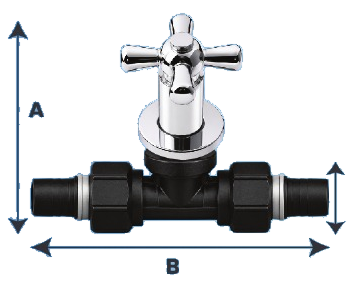

Classic Handle
| Model | Pipe Size (mm) | Dimension A | Dimension B | Dimension C |
|---|---|---|---|---|
| Female Thread | 1/2"/15mm | 32 | 21 | 51 |
| 3/4"/20mm | 38 | 17 | 51 | |
| 1"/25mm | 47 | 18 | 51 |
Square Knob Handle
| Model | Pipe Size (mm) | Dimension A | Dimension B | Dimension C |
|---|---|---|---|---|
| Female Thread | 1/2"/15mm | 32 | 21 | 76 |
| 3/4"/20mm | 38 | 17 | 76 | |
| 1"/25mm | 47 | 18 | 76 |
