Chezy Floor Trap Accessories
Accessories components for Chezy floor-trap systems, covering backflow control, soap-bubble control, floor-slab pipe sleeves and in-line drainage containers.

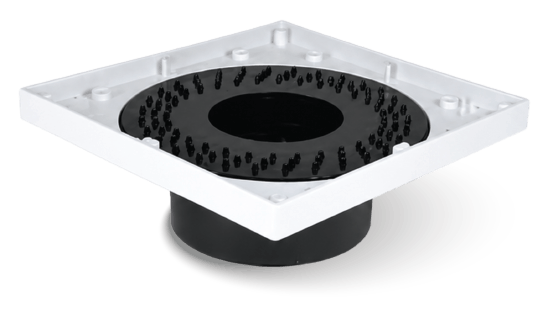

Anti Back Flow Device For Top Access Floor Trap
We now have an additional feature (this patented new feature) which not only traps hair and other debris, it prevents any backflow of water out of the floor trap through the grating onto the floor.
Presently, all available top access floor trap brands in the market have the problem of water coming out of the grating. This happens if a twin bowl kitchen sink is discharged simultaneously from both bowls into the trap. The high volume of water discharged will result in water coming out of the grating and onto the floor.
Our Chezy Backflow Device helps eliminate this problem with No Backflow of Water!
Anti Back Flow Device When Not In Use
Anti Back Flow Device When In Use
Accessories for Chezy Floor Trap Systems
The supplied catalogue presents four main accessory components, each addressing a specific drainage, maintenance or connection requirement.
The supplied catalogue presents four main accessory components,
each addressing a specific drainage, maintenance or connection requirement.

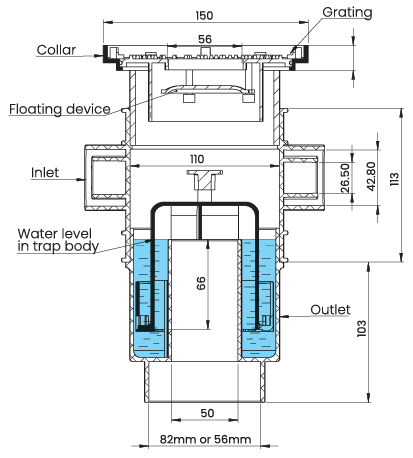

Anti Back Flow Device for Top Access Floor Trap
The patented feature not only traps hair and other debris, it also prevents backflow of water out of the floor trap through the grating onto the floor.

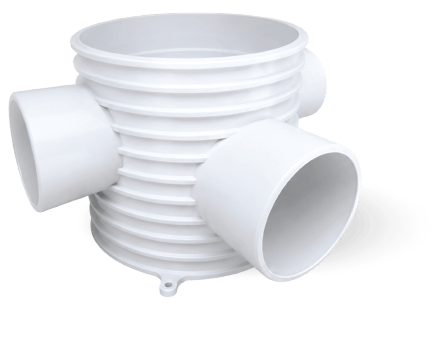

Socket Pipe Sleeve for Chezy Floor Traps
Socket pipe sleeves and half-body socket pipe sleeves are used in the floor slab for uPVC pipes. The catalogue states a maximum pipe size of up to 50mm.

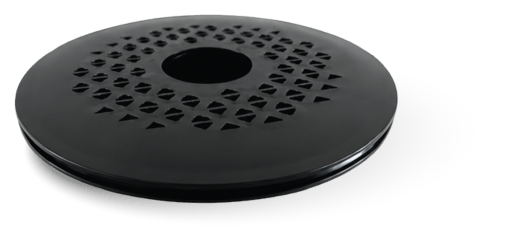

Anti Soap Bubble Device for Chezy Floor Traps
For kitchen sinks and washing machines. The catalogue describes it as an accessory used with Chezy collars to prevent soap bubbles from coming out of floor-trap gratings.

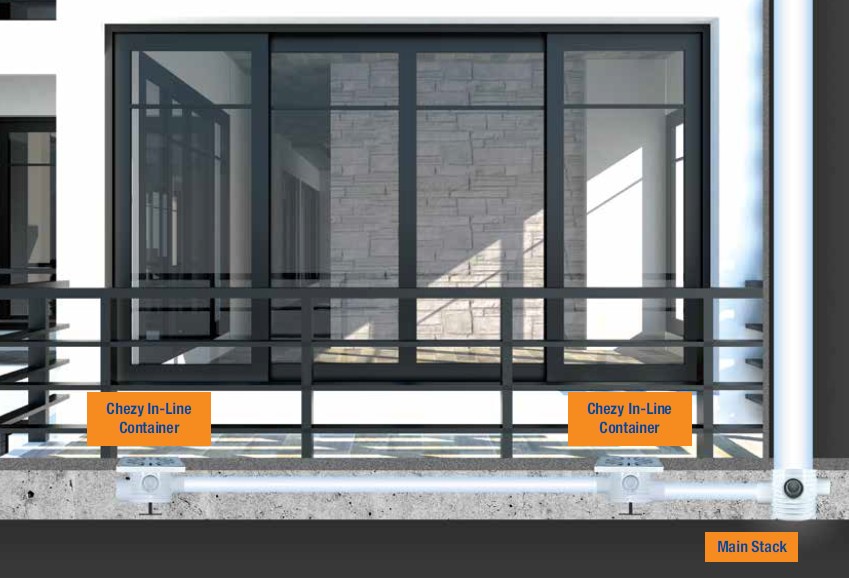

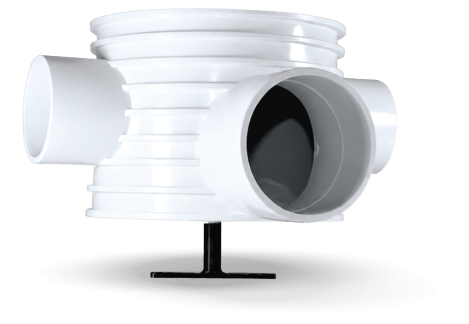

In-Line Container for Chezy Floor Traps

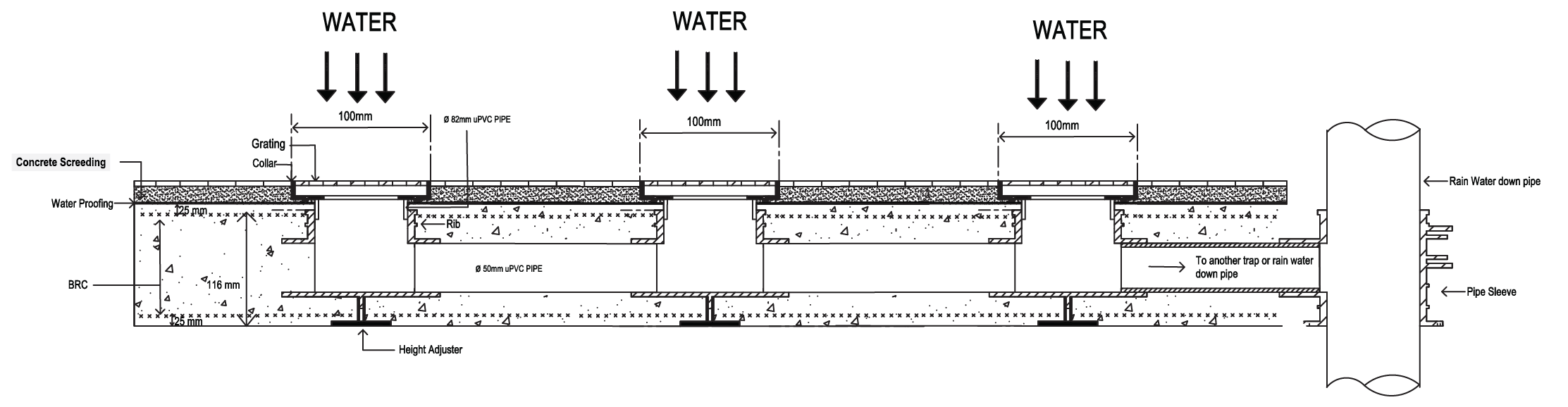

Available in two sizes with 50mm (2-inch) outlets. It can be used in the dry part of the bathroom or kitchen, connected to the floor trap, or joined in series for scupper drains or larger drainage areas.
