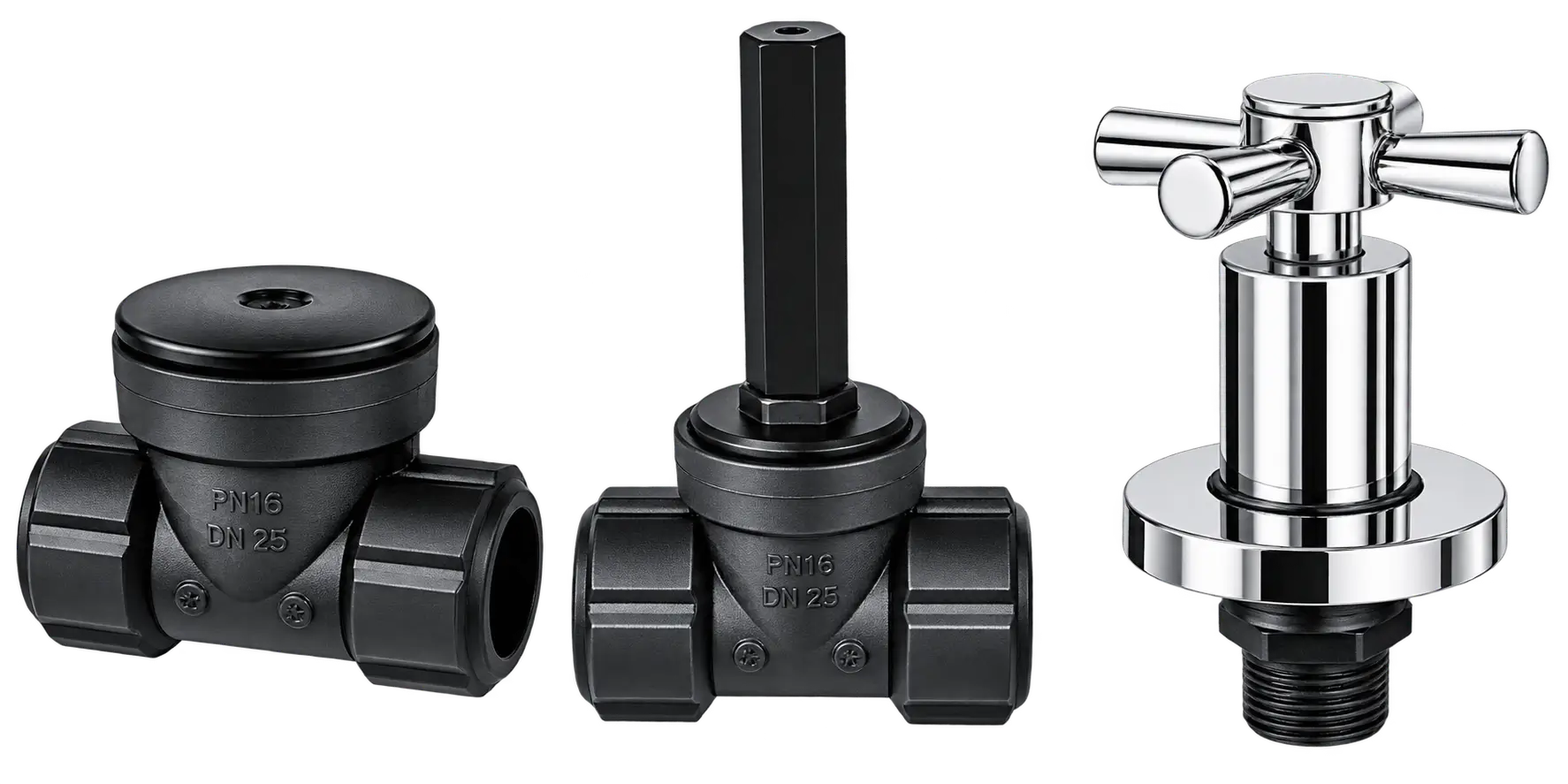

Chezy Stop Valves
Chezy Stop Valves are designed for potable water plumbing systems with high performance, reliable sealing, and installer-friendly jointing methods. The range is available in three categories to suit different pipe connection requirements.
Chezy Stop Valves
Chezy Stop Valves are designed for potable water plumbing systems with high performance, reliable sealing, and installer-friendly jointing methods. The range is available in three categories to suit different pipe connection requirements.
Chezy Stop Valves
Chezy Stop Valves are designed for potable water plumbing systems with high performance, reliable sealing, and installer-friendly jointing methods. The range is available in three categories to suit different pipe connection requirements.
| Category | Pipe Connection | Jointing Method | Main Advantage |
|---|---|---|---|
| Mechanical Stop Valve | Threaded end – pipe requires adaptor. | Mechanical tightening | Suitable for all types of threaded plumbing systems |
| Adaptor Stop Valve | Direct to HDPE pipe | Mechanical tightening | No adaptor required, fewer joints. |
| Socket Fusion Stop Valve | Direct to HDPE pipe | Socket fusion welding | Permanent welded HDPE joint. |
Common Features
01 — Tested and certified to SIRIM 9:2017
02 — PN16 rated, SPAN approved
03 — Malaysian made
04 — Safe for human consumption
05 — Robust body design
06 — High flow performance.
07 — Low head loss
08 — Wrench-free cartridge joint
09 — Anti-self unwinding design
10 — Various design knobs & handles
11 — All stop valve bodies come with levellers:
- Allows pressure testing during construction phase
- Anti-theft and anti-scratch solution – Leveller is removed and replaced with cartridge after wall finishing.
Tested Performance
| No. | Test | Requirement / Result |
|---|---|---|
| 1 | Torque Test | 15mm: 10Nm / 20mm: 15Nm / 25mm: 20Nm |
| 2 | Bending Moment Test | 15mm: 75Nm / 20mm: 95Nm / 25mm: 150Nm |
| 3 | Leak Tightness | 60 seconds, 16 bar |
| 4 | Pressure Resistance | 10 minutes, 25 bar |
| 5 | Flow Capacity | 15mm: 12 L/min / 20mm: 24 L/min / 25mm: 42 L/min |
| 6 | Endurance Test | 10,000 opening and closing cycles |
Chezy Stop Valves are Convenient!
Can purchase separately.
Body with leveller & Cartridge
Scratch free, easy pressure test, avoid stolen, no cartridge damage during construction.
View this video for more understanding from 3.39 min to 4.01 min. The video talks about the benefits of Flat Leveller (for shear wall) and Long Leveller (for brick wall).
