Chezy 2
All Access™ Floor Trap

This innovative patented floor trap by Chezy is used below the floor slab to remove water from the floor surface. The body of the floor trap has side connections for the basin, long bath, washing machine, kitchen sink and etc.

Explore Key Benefits
View Specifications

The End to All Your Floor Traps Problem

The bottom of the floor trap body has a screwed-on cap that can be removed from below the slab to access the outgoing pipe for rodding in the event of blockages.

The catalogue also states that the system can be serviced from the top of the bathroom, allowing maintenance either from above or below the floor slab.

When the baffled container is not used, the system can operate as a conventional floor trap. When the baffle container is used, it provides the top-access function.

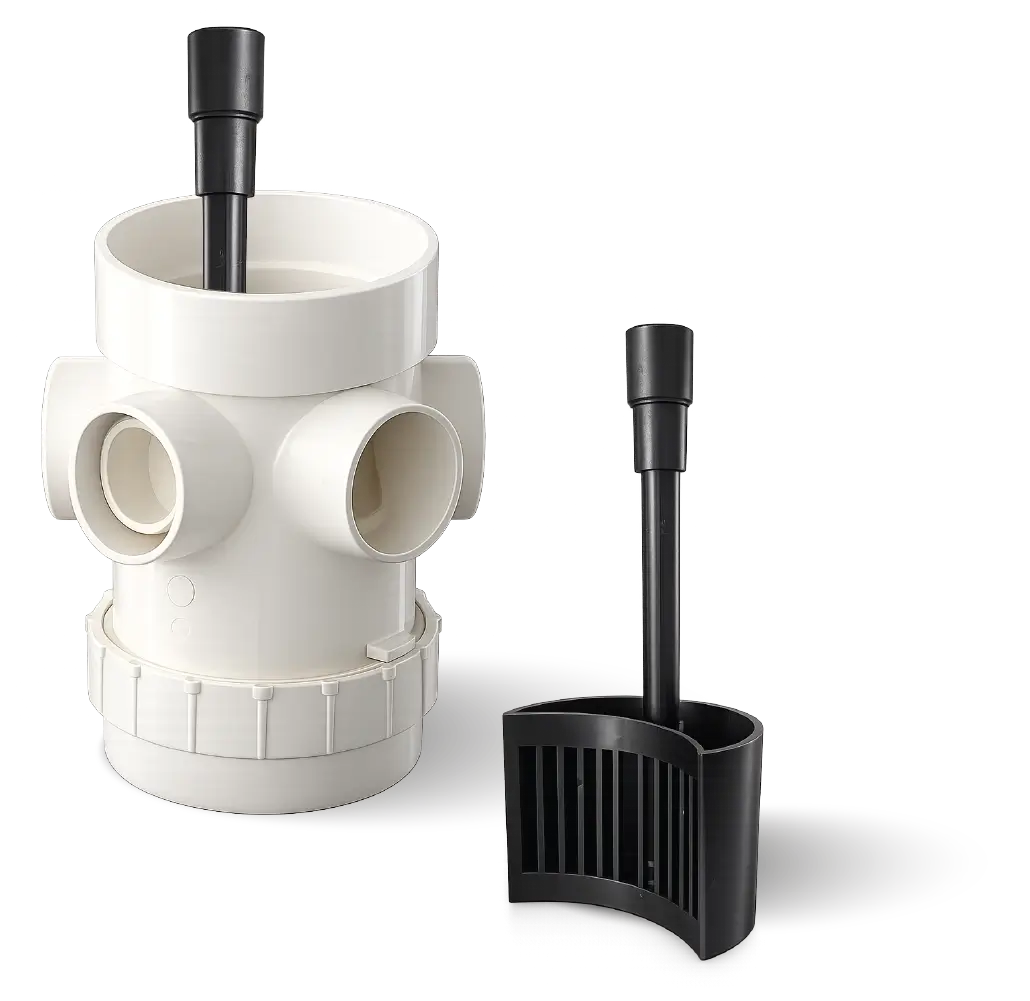

Adjustable Baffle Container

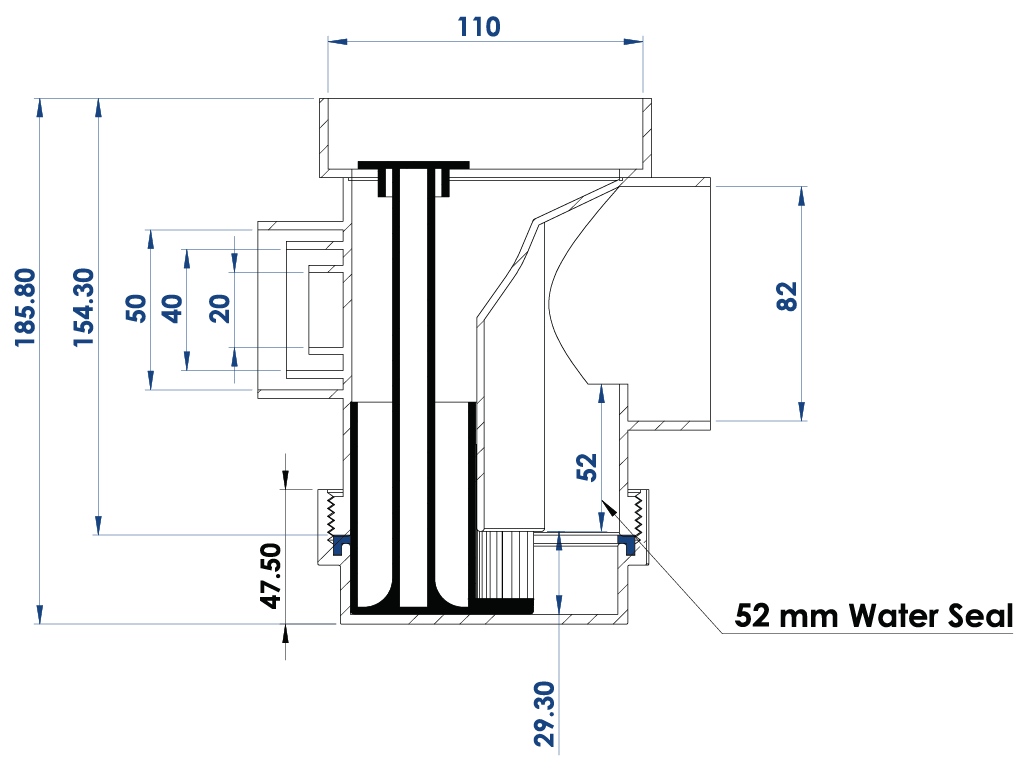

Dimension - All Access™ Floor Trap

Why Chezy 2 All Access™ Floor Trap ?

There have been numerous complaints from plumbers (installers), developers and house owners with the existing floor traps available in the market. The main issues have been foul smell in the bathroom and maintenance issues during installation and after the house owner moves in. The Chezy All Access™™ floor traps eliminates all these problems and gives you peace of mind.

Chezy has developed a new floor trap that can both be serviced from the top (bathroom) or from below (floor slab), hence the name All Access™™ (Top & Bottom Access™™) Floor Traps.

Designed Around the Main Failure Points of Floor Traps

The catalogue identifies recurring complaints involving foul smell, evaporation, rubber seals and difficult maintenance. The All Access™ concept is presented as Chezy’s response to those issues.

Foul Smell

Described as a result of loss of the water seal, either through evaporation or failure of the rubber ring used to retain the water in the trap.

Evaporation

Top-access floor traps can position the water seal close to the warm bathroom floor. The catalogue states this can accelerate evaporation and eventually allow foul smell to enter.

Rubber / Rubber Rings

Dirty contact surfaces can prevent proper sealing. Cement and construction debris are identified as common causes of poor rubber-to-surface contact.

All Access™ Concept

The supplied page explains that Chezy developed a floor trap that can be serviced from the top (bathroom) or from below the floor slab, hence the “All Access™” naming.

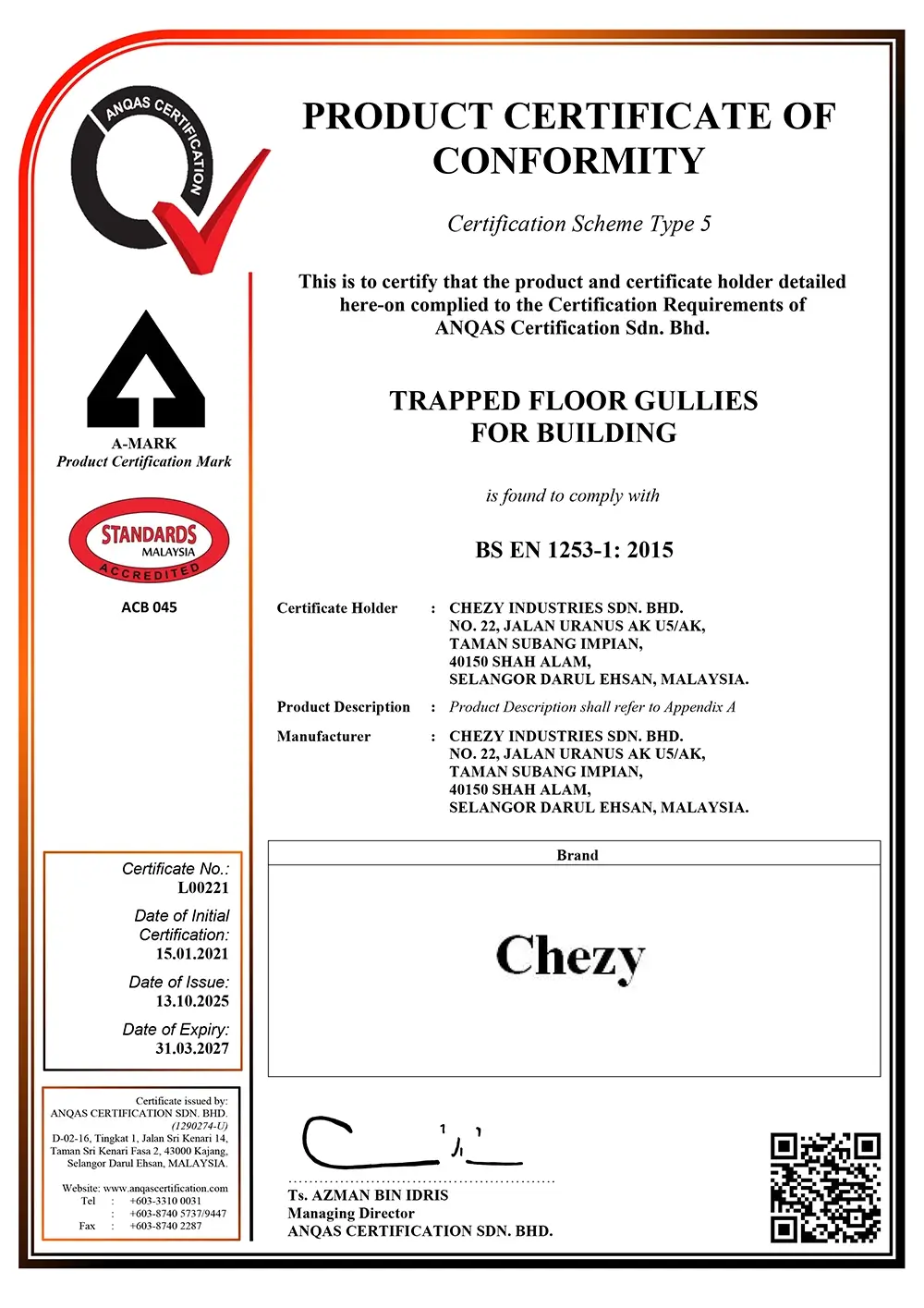

Its extendable container is described as incorporating a water seal of about 50mm, with flow rates exceeding 80 litres/min. The page also states third-party certification to BS EN 1253.

Top Access™ vs Conventional Floor Traps

The catalogue compares the serviceability of top-access and conventional floor traps,
then positions the Chezy 2 All Access™ system as an attempt to retain the useful characteristics of both.

  • Easy for the owner to service without going below the slab.

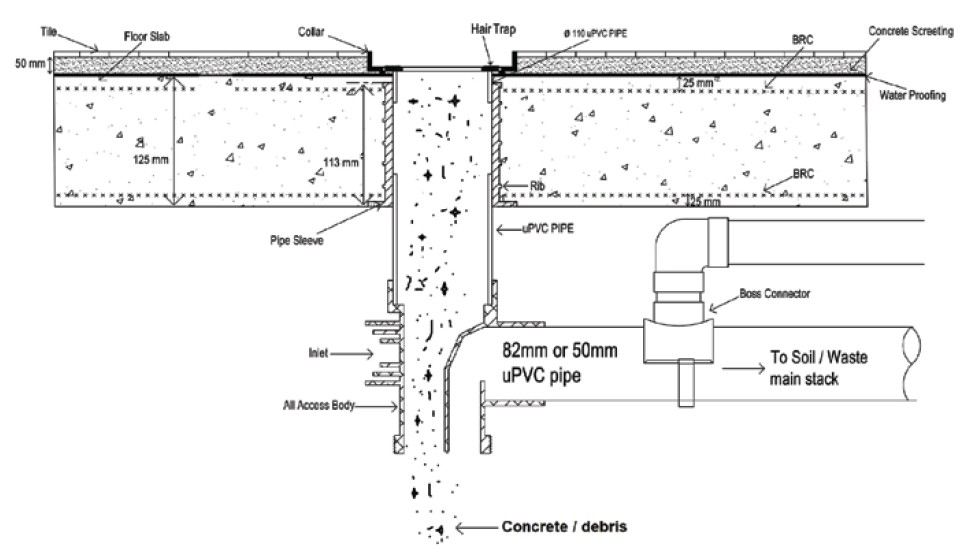

  • During tiling, concrete can enter the trap and may be difficult for the plumber to clear.
  • The catalogue says typical overall trap depth is about 200mm below the grating.
  • Misalignment of collar and body can make the bell or insert difficult to remove.
  • An opening greater than 120mm in the collar is described as important for maintenance access.
  • Maintenance access is from the bottom of the trap below the slab.
  • Being further from the heat source helps the water remain in the trap longer.
  • Leaving the bottom cap off during construction allows debris and cement to fall out.
  • The catalogue notes that conventional traps can be 300mm or more from the grating.
  • Bottom-only access is identified as a significant maintenance problem in condominiums and apartments.

The Benefits of Chezy 2 All Access™ Floor Trap

In other words, the best of both worlds (all advantages of both the top access and conventional floor traps)
with none of their disadvantages. It is ‘Perfection At It’s Very Best’.

Dual-Side Servicing

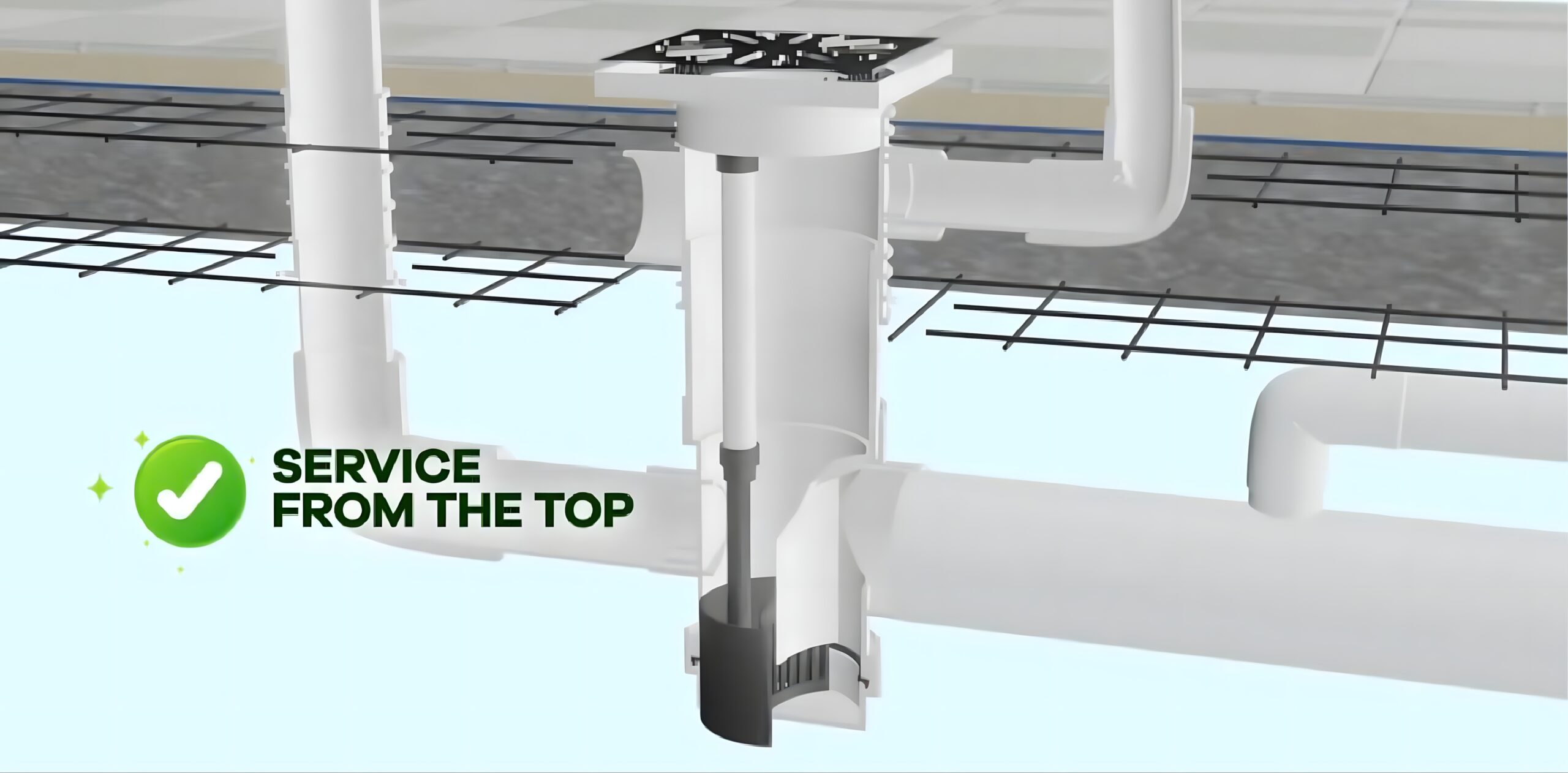

Can be serviced or maintained from the top of the bathroom or from below the floor slab.

Debris-Free Installation

Prevents debris or cement from falling into the floor trap during tiling by keeping the cap in place until the tiling work is completed.

Easy Maintenance

After the unit is occupied, simply remove the grating and pull out the adjustable baffle container for cleaning. Clean, replace and reinstall with ease.

Prevents Backflow & Soap Bubbles

Helps prevent backflow or soap bubble issues, even at high flow rates and when installed at least 250mm from the grating.

Reduced Water Seal Evaporation

Positioned further away from the heat source, helping provide longer-lasting protection against water seal evaporation.

Suitable for Transfer Slabs

Ideal for transfer slab applications where the distance from the grating to the trap can exceed 1 metre. A long handle allows the baffle container to be removed easily.

Maintenance Guide

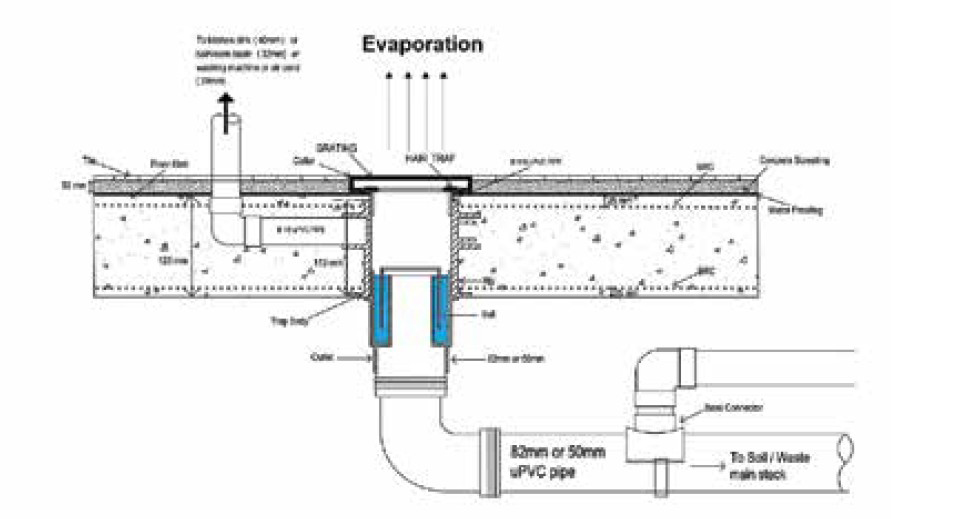

Figure 1: Cross section view of Floor Trap in Slab

Maintenance Steps

  1. Remove the grating and hair trap from the collar.
  2. Clean the hair trap by removing trapped hair and dirt.
  3. Remove the baffle container from the body of the trap.
  4. Remove any hair and dirt caught by the baffle container.
  5. Pour water into the trap to flush out any dirt, etc.
  6. Replace baffle container into the trap body. Ensure that the baffle container sits firmly in the body.
  7. Replace cleaned hair trap into the collar.
  8. Finish the maintenance of the all-access floor trap by replacing the grating.

Please Scan The QR To View The Maintenance Animated Video
