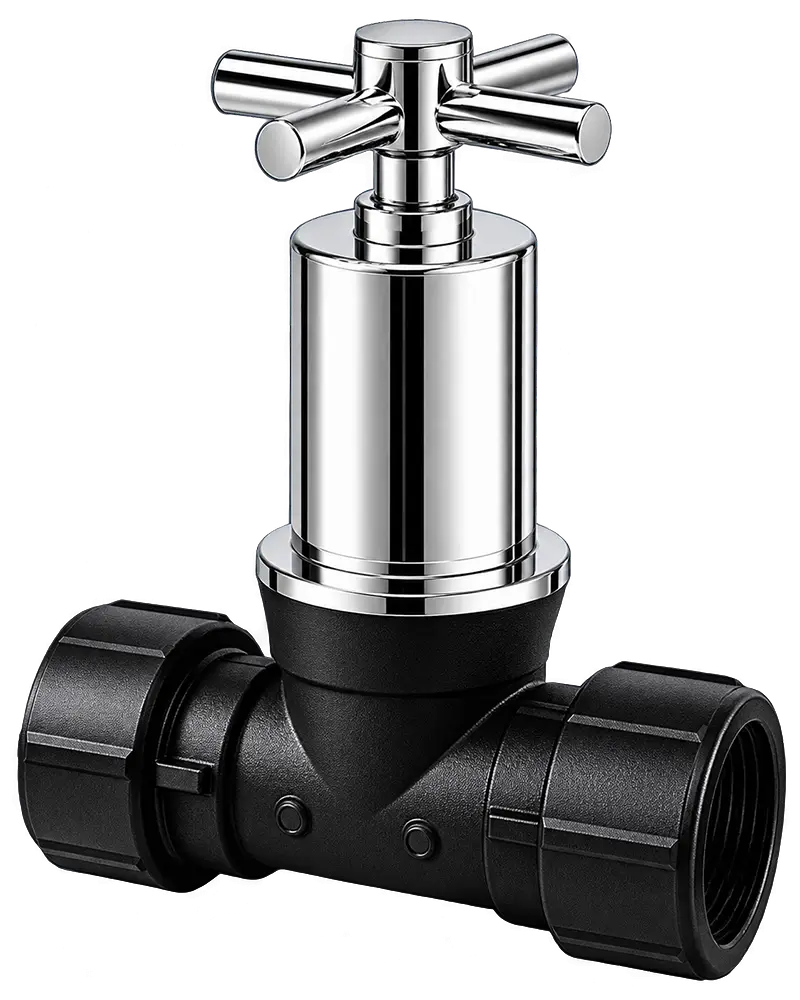

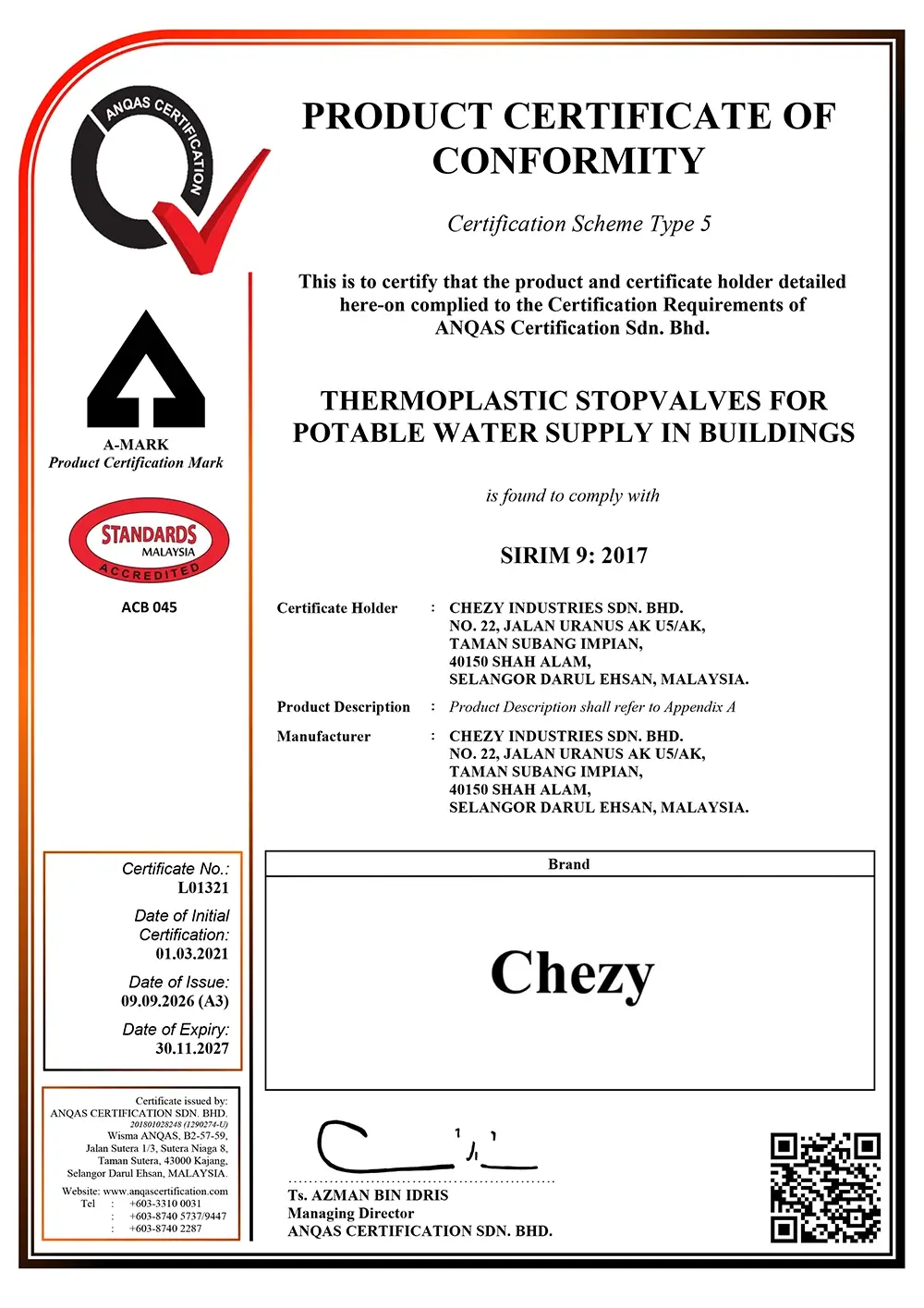

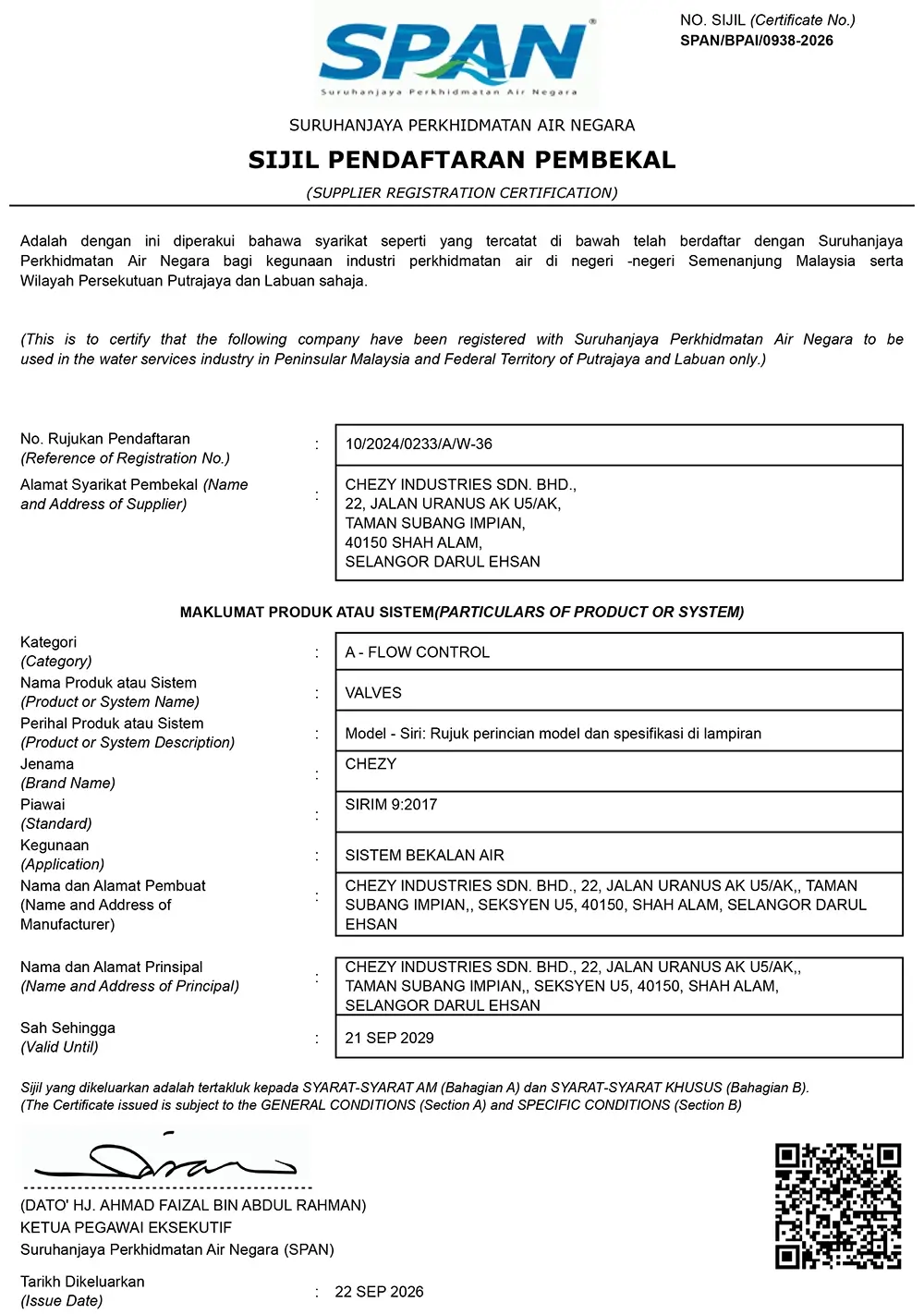

Chezy Mechanical Stop Valve

Chezy Mechanical Stop Valves are designed for all types of plumbing systems using threaded connections. They are available in BSP 1/2″, 3/4″, and 1″ sizes.

Chezy Mechanical Stop Valves are extremely robust with high thread strength. Tests have shown that our valves have the lowest head loss and the rates when highest flow compared to any other similar-sized stop valves available in the market.

Mechanical Stop Valve Installation Method

Five installation steps from the supplied catalogue.

Step 1

Wind 10 rounds of white Teflon tape on the male thread adaptor. Do not use thread or string.

Step 2

Turn the Male thread adaptor into the valve body.
Turn using hand until the adaptor is tight, use hand only.

Step 3

After tightening by using hand, use pipe wrench (custom),
make two more turns of the male thread adaptor.

Step 4

Do not use white tape on the thread of the cartridge.

Step 5

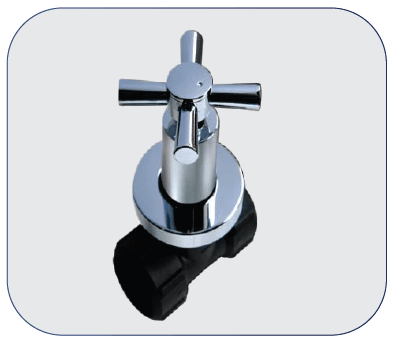

Place cartridge in body correctly. Cartridge only needs to be screwed in the body tightly by hand. Do not use pipe wrench (custom) to tighten cartridge into the body.

Mechanical Stop Valve Configurations

The catalogue is reorganised below into clear website-ready product families while
keeping the dimensional values supplied in the source pages.

Plastic Sleeve Configurations

Plastic Black Sleeve (X-Handle / T-Handle)

Model	Pipe Size (mm)	Dimension A	Dimension B	Dimension C
DN15	20	123	72	55
DN20	25	124	76	56
DN25	32	133	81	65

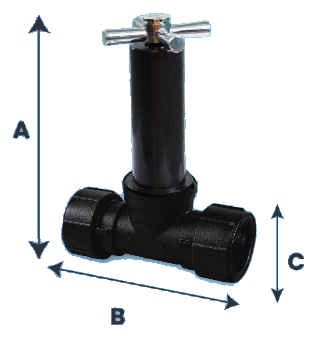

Plastic Black Sleeve Long (X-Handle / T-Handle)

Model	Pipe Size (mm)	Dimension A	Dimension B	Dimension C
DN15	20	147	72	55
DN20	25	148	76	56
DN25	32	157	81	65

Plastic Chrome Sleeve (X-Handle / T-Handle)

Model	Pipe Size (mm)	Dimension A	Dimension B	Dimension C
DN15	20	123	72	55
DN20	25	124	76	56
DN25	32	133	81	65

Plastic Chrome Sleeve Long (X-Handle / T-Handle)

Model	Pipe Size (mm)	Dimension A	Dimension B	Dimension C
DN15	20	147	72	55
DN20	25	148	76	56
DN25	32	157	81	65

Metal Sleeve Configurations

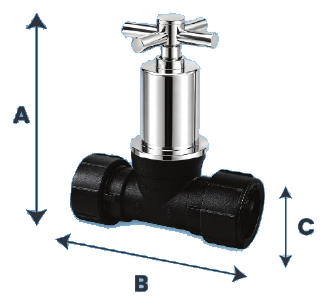

Metal Sleeve (X-Handle / T-Handle)

Model	Pipe Size (mm)	Dimension A	Dimension B	Dimension C
DN15	20	126	72	55
DN20	25	127	76	56
DN25	32	136	81	65

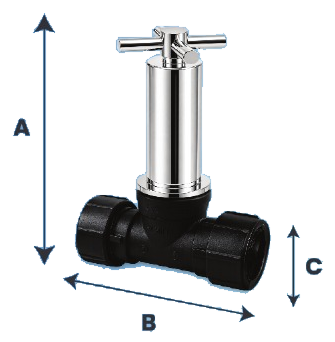

Metal Sleeve Long (X-Handle / T-Handle)

Model	Pipe Size (mm)	Dimension A	Dimension B	Dimension C
DN15	20	152	72	55
DN20	25	153	76	56
DN25	32	162	81	65

Alternative Handle Designs

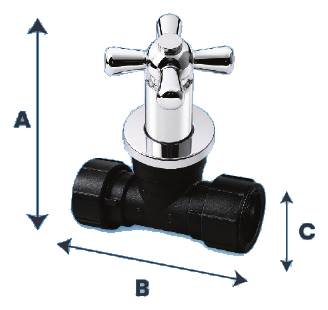

Classic Handle

Model	Pipe Size (mm)	Dimension A	Dimension B	Dimension C
Female Thread	1/2"/15mm	157	72	55
	3/4"/20mm	158	76	56
	1"/25mm	167	81	65

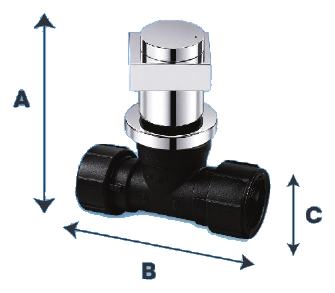

Square Knob Handle

Model	Pipe Size (mm)	Dimension A	Dimension B	Dimension C
Female Thread	1/2"/15mm	157	72	55
	3/4"/20mm	158	76	56
	1"/25mm	167	81	65
