Chezy HDPE Pipes & Superior Mechanical Fittings
Designed for PN16 (SDR11) HDPE pipes, the Chezy mechanical fittings system offers faster, more secure installation with a patented visual tightening indicator.
Products Overview
HDPE Pipes
PN16 pipes available in 5m straight lengths and 100m coils for water applications.
Mechanical Fittings
Patented Chezy fittings system for internal plumbing all the way from water meter to tap.
Installation Guide
Simple 3-step fool-proof installation process designed to reduce mistakes and rework.
Connection Components
Threaded adaptors, tees, elbows, nipples, bush and extension pieces.
HDPE Pipes
PN16 pipes available in 5m straight lengths and 100m coils for water applications.
Mechanical Fittings
Patented Chezy fittings system for internal plumbing all the way from water meter to tap.
Installation Guide
Simple 3-step fool-proof installation process designed to reduce mistakes and rework.
Connection Components
Threaded adaptors, tees, elbows, nipples, bush and extension pieces.

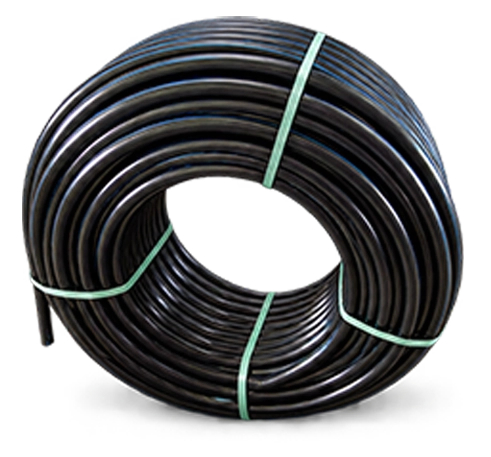

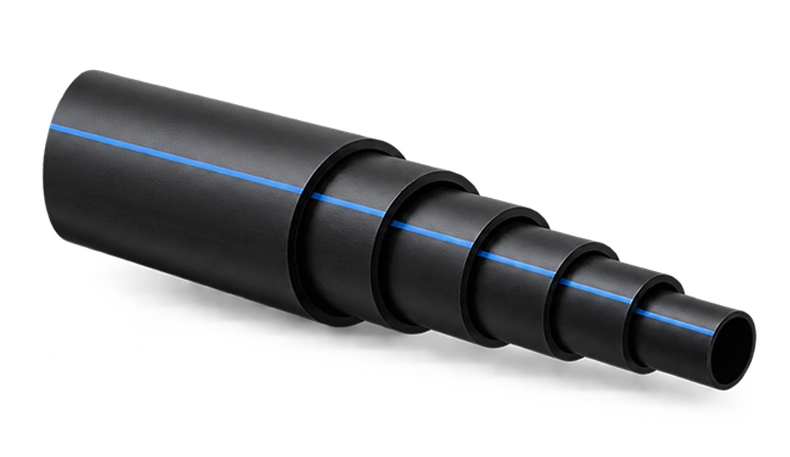

HDPE Pipes (PN16)
High-quality polyethylene pipes designed to support leak-proof pressure water systems.
The range is available in multiple sizes for flexibility across installations.
| Size (mm) | Code |
|---|---|
| 20 | PN1620-L |
| 25 | PN1625-L |
| 32 | PN1632-L |
| 40 | PN1640-L |
| Size (mm) | Code |
|---|---|
| 20 | PN1620-R |
| 25 | PN1625-R |
| 32 | PN1632-R |
| 40 | PN1640-R |
Fool-Proof Engineering
Patented Chezy Superior Mechanical Fittings (SIRIM 11)
- Nothing available in the market that is better than Chezy.

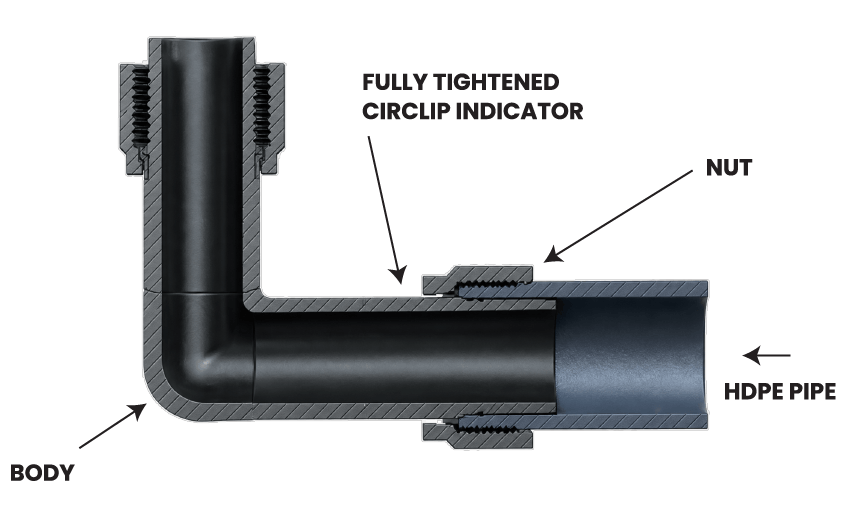

- A white indicator becomes visible behind the nut when the nut is fully tightened, offering a “fool-proof” engineering solution for a quick and secure installation.
- Chezy system for internal plumbing all the way from water meter to tap.
Why Chezy Mechanical Fittings Beat Every Brand ?
Jointing of mechanical fittings to HDPE pipes was previously done by the “feel” of the installer. The Chezy system removes the guesswork by using a visible indicator at the back of the nut.
No feel, only science. Tighten the nut with a wrench until you can visually see the indicator. This gives specifiers and installers greater confidence that the joint will not leak.
No Fuss, No Hassle Installation – Fool Proof

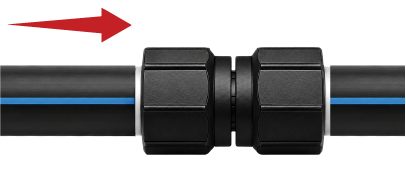

Step 1
Push pipe fully over barbs onto the fitting until it stops.

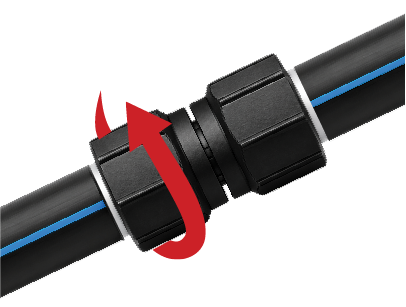

Step 2
Hold the pipe by hand and turn the nut anti-clockwise until it bites the outside of the pipe.

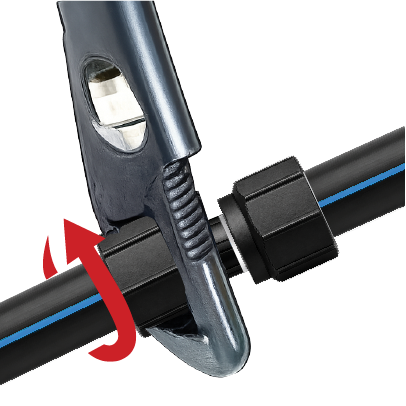

Step 3
Lock the nut tightly using wrenches and continue until the white indicator is visible.
Full Product Specification
Couplings & Elbows

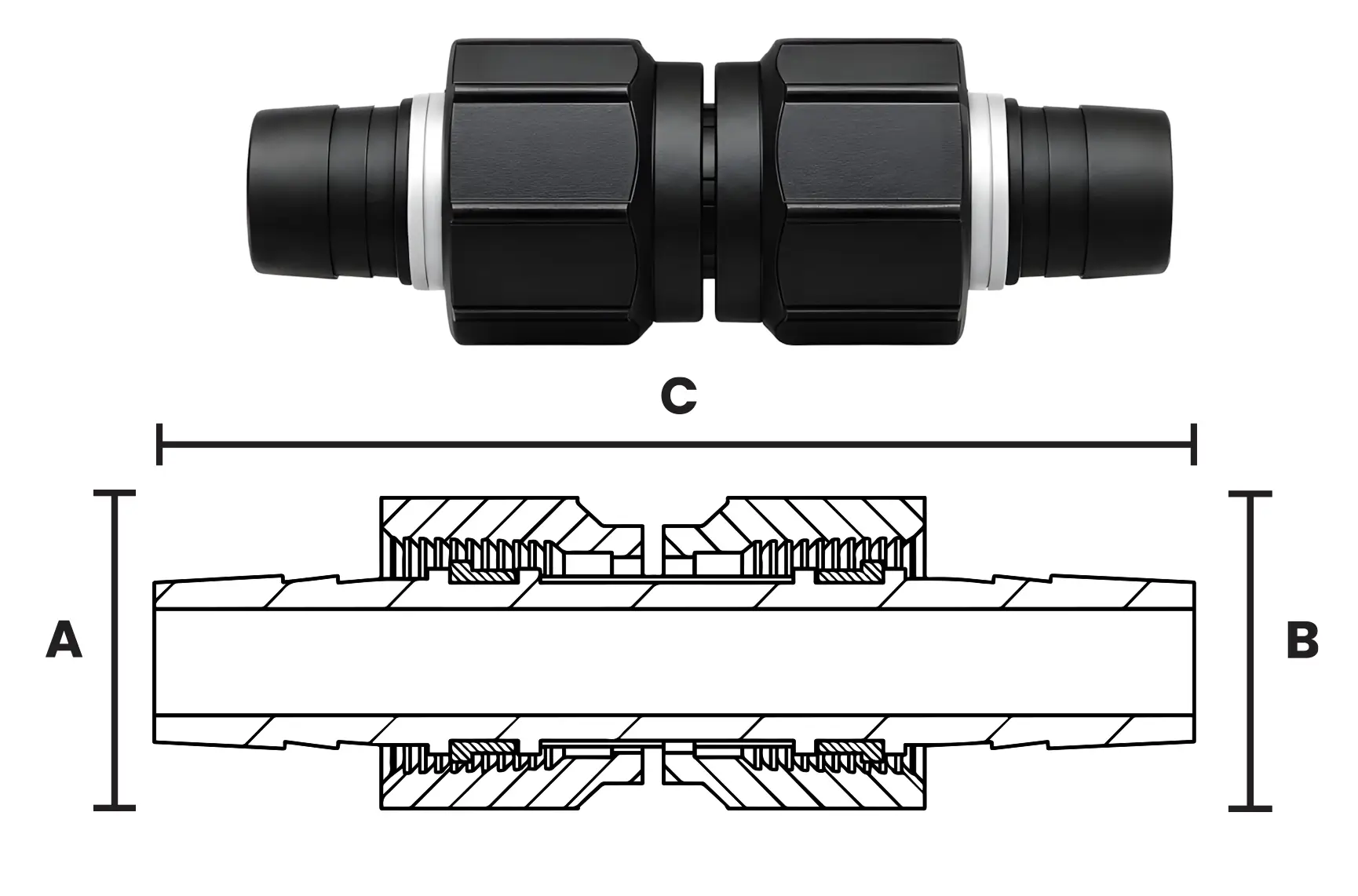

Equal Coupling
| Product Code | Size (mm) | A | B | C |
|---|---|---|---|---|
| EC-20 | 20 | 29 | 29 | 94 |
| EC-25 | 25 | 32 | 32 | 96 |
| EC-32 | 32 | 43 | 43 | 98 |
| EC-40 | 40 | 57 | 57 | 113 |

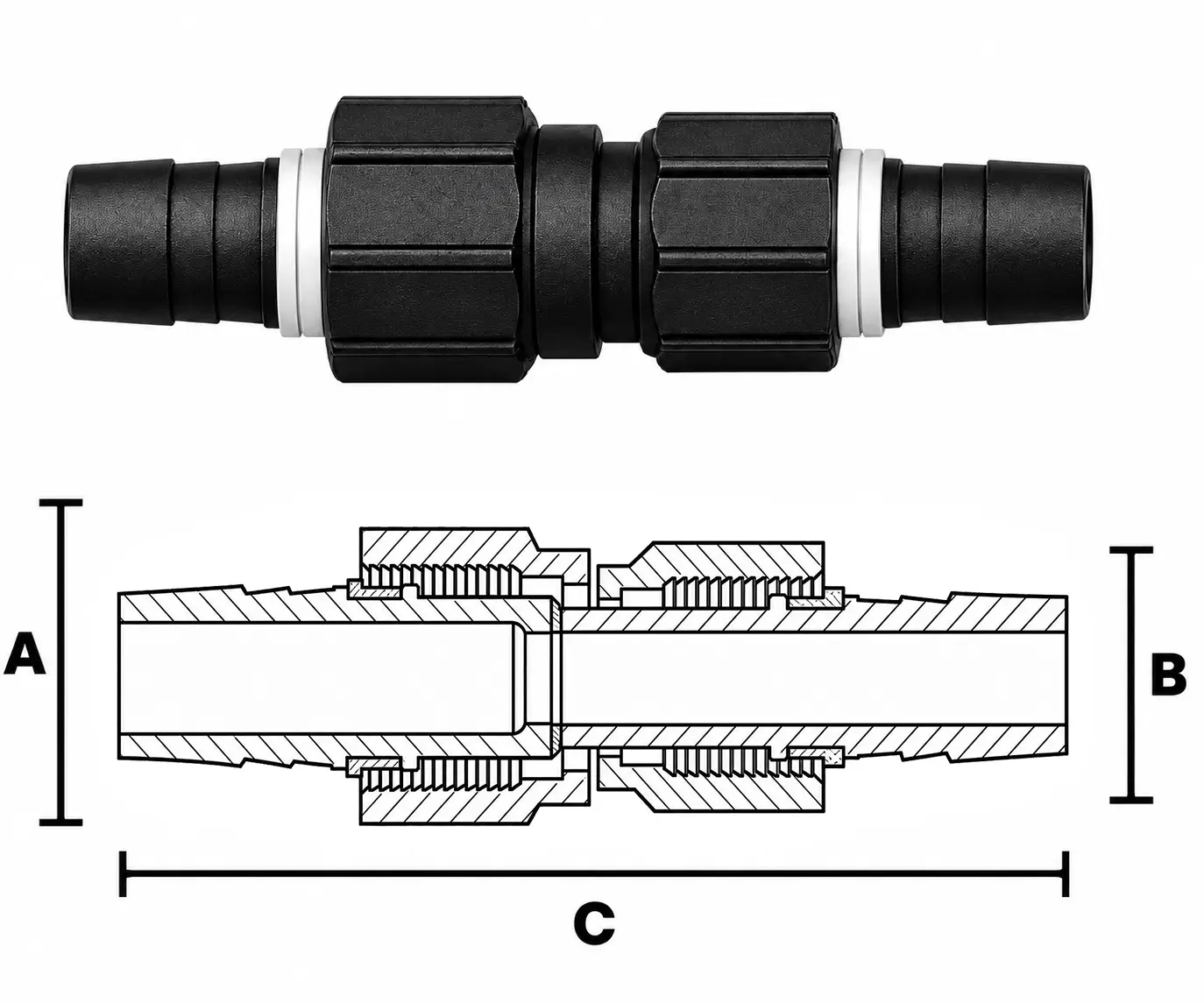

Reducing Coupling
| Product Code | Size (mm) | A | B | C |
|---|---|---|---|---|
| RC-25.20 | 25 × 20 | 32 | 29 | 109 |
| RC-32.20 | 32 × 20 | 43 | 29 | 111 |
| RC-32.25 | 32 × 25 | 43 | 32 | 115 |
| RC-40.32 | 40 × 32 | 57 | 43 | 116 |
| RC-40.25 | 40 × 25 | 57 | 32 | 116 |

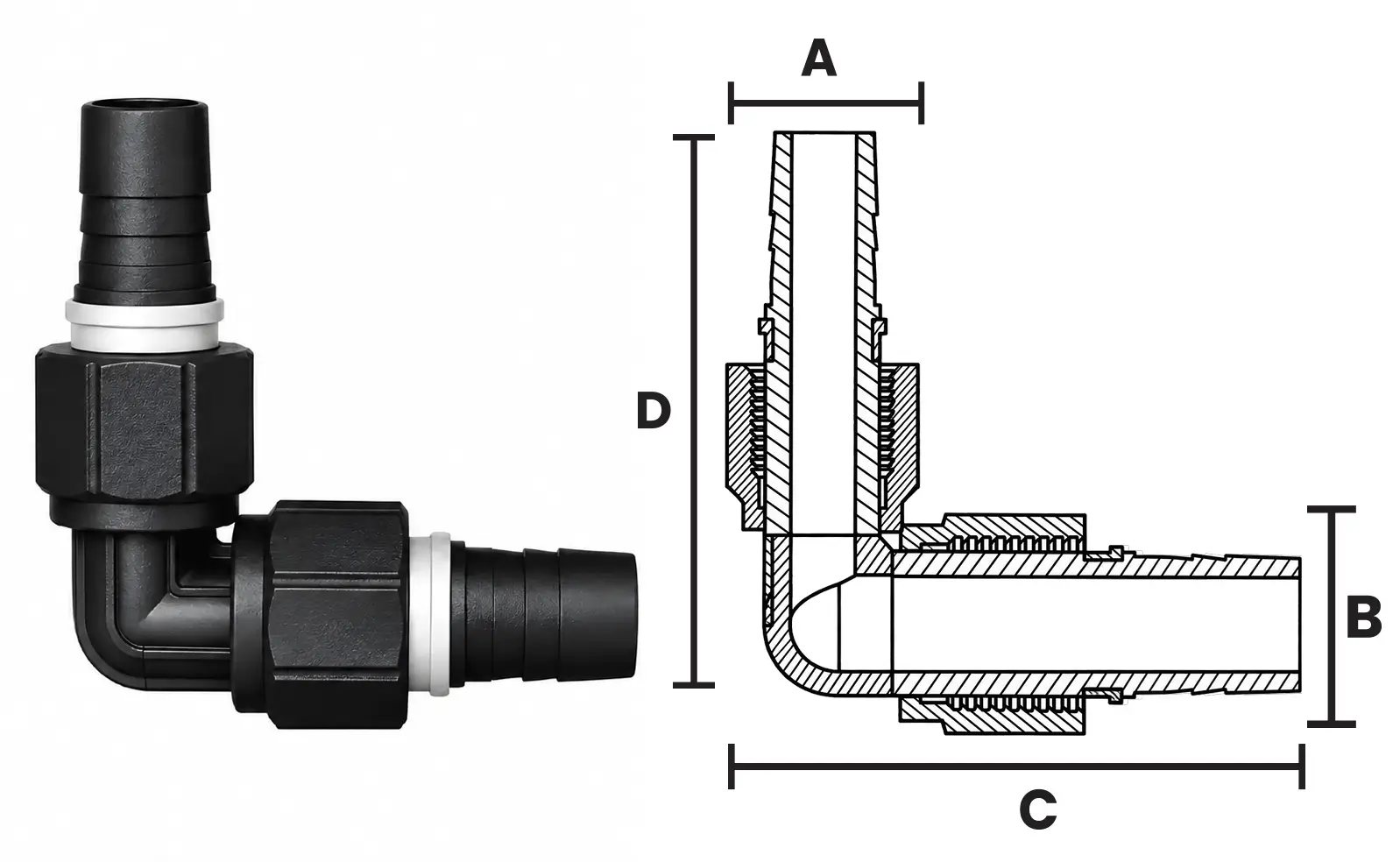

Equal Elbow 90°
| Product Code | Size (mm) | A | B | C | D |
|---|---|---|---|---|---|
| EE-20 | 20 | 29 | 29 | 78 | 78 |
| EE-25 | 25 | 32 | 32 | 87 | 87 |
| EE-32 | 32 | 43 | 43 | 92 | 92 |
| EE-40 | 40 | 57 | 57 | 109 | 109 |

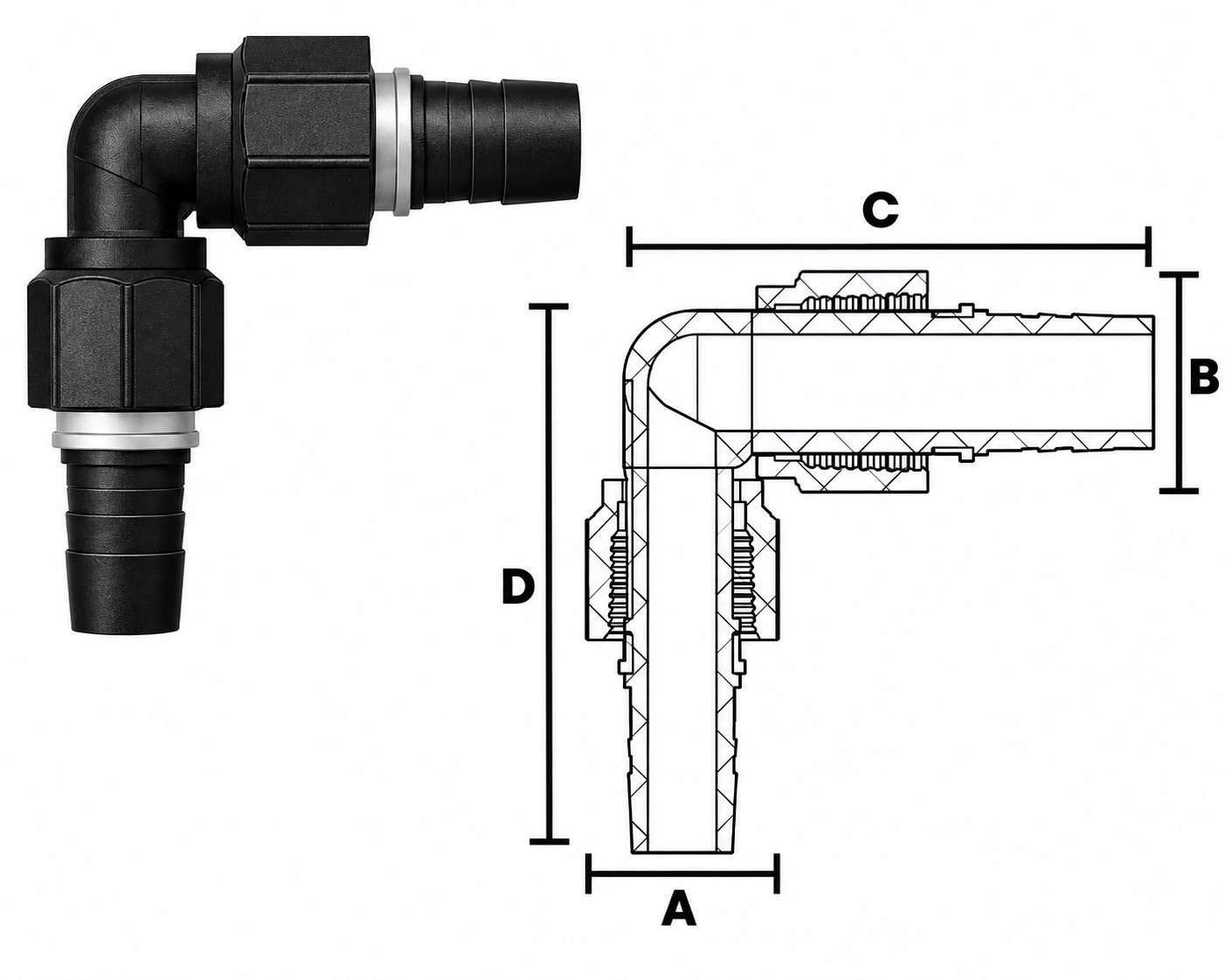

Reducing Elbow 90°
| Product Code | Size (mm) | A | B | C | D |
|---|---|---|---|---|---|
| RE-25.20 | 25 × 20 | 32 | 29 | 81 | 80 |
| RE-32.25 | 32 × 25 | 43 | 32 | 90 | 85 |
| RE-32.20 | 32 × 20 | 43 | 29 | 88 | 81 |
| RE-40.32 | 40 × 32 | 57 | 43 | 97 | 101 |
| RE-40.25 | 40 × 25 | 57 | 32 | 96 | 95 |
Tees & Adaptors

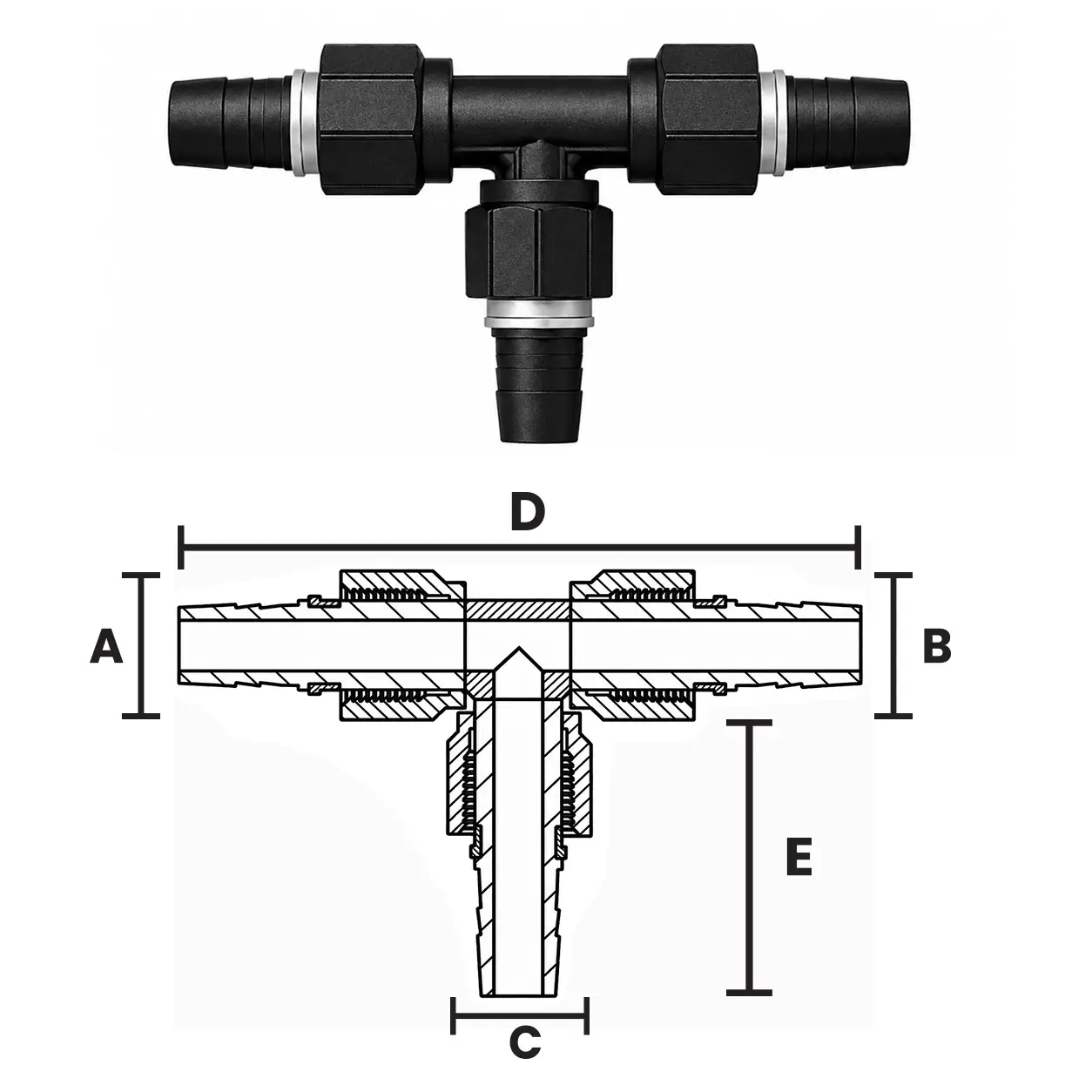

Equal Tee
| Product Code | Size (mm) | A | B | C | D | E |
|---|---|---|---|---|---|---|
| ET-20 | 20 | 29 | 29 | 29 | 137 | 48 |
| ET-25 | 25 | 32 | 32 | 32 | 143 | 49 |
| ET-32 | 32 | 43 | 43 | 43 | 156 | 50 |
| ET-40 | 40 | 57 | 57 | 57 | 181 | 51 |

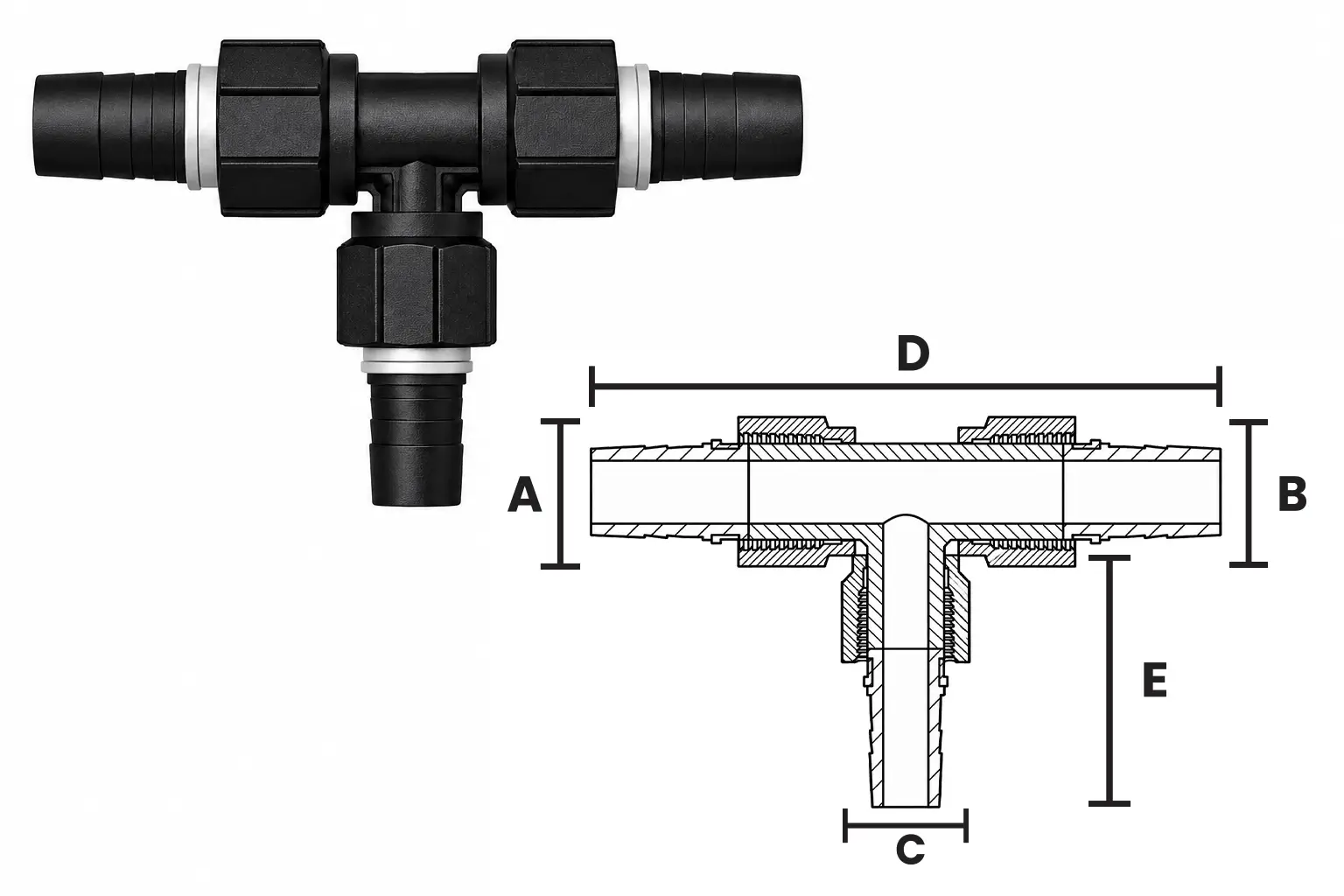

Reducing Tee
| Product Code | Size (mm) | A | B | C | D | E |
|---|---|---|---|---|---|---|
| RT-25.20 | 25 × 20 | 32 | 32 | 29 | 141 | 50 |
| RT-32.25 | 32 × 25 | 43 | 43 | 32 | 147 | 58 |
| RT-32.20 | 32 × 20 | 43 | 43 | 29 | 143 | 58 |
| RT-40.32 | 40 × 32 | 57 | 57 | 43 | 174 | 54 |
| RT-40.25 | 40 × 25 | 57 | 57 | 32 | 167 | 64 |
Male Thread Adaptor (BSPT Male)
| Product Code | Size | A | B | C |
|---|---|---|---|---|
| MTA-20.1/2 | 20 × ½” | 29 | 22 | 88 |
| MTA-20.3/4 | 20 × ¾” | 29 | 28 | 91 |
| MTA-25.1/2 | 25 × ½” | 32 | 22 | 89 |
| MTA-25.3/4 | 25 × ¾” | 32 | 28 | 93 |
| MTA-25.1 | 25 × 1” | 32 | 35 | 94 |
| MTA-32.3/4 | 32 × ¾” | 43 | 28 | 94 |
| MTA-32.1 | 32 × 1” | 43 | 35 | 95 |
| MTA-40.1 | 40 × 1” | 57 | 35 | 105 |
| MTA-40.1¼ | 40 × 1¼” | 57 | 43 | 115 |
| MTA-40.1½ | 40 × 1½” | 57 | 49 | 110 |

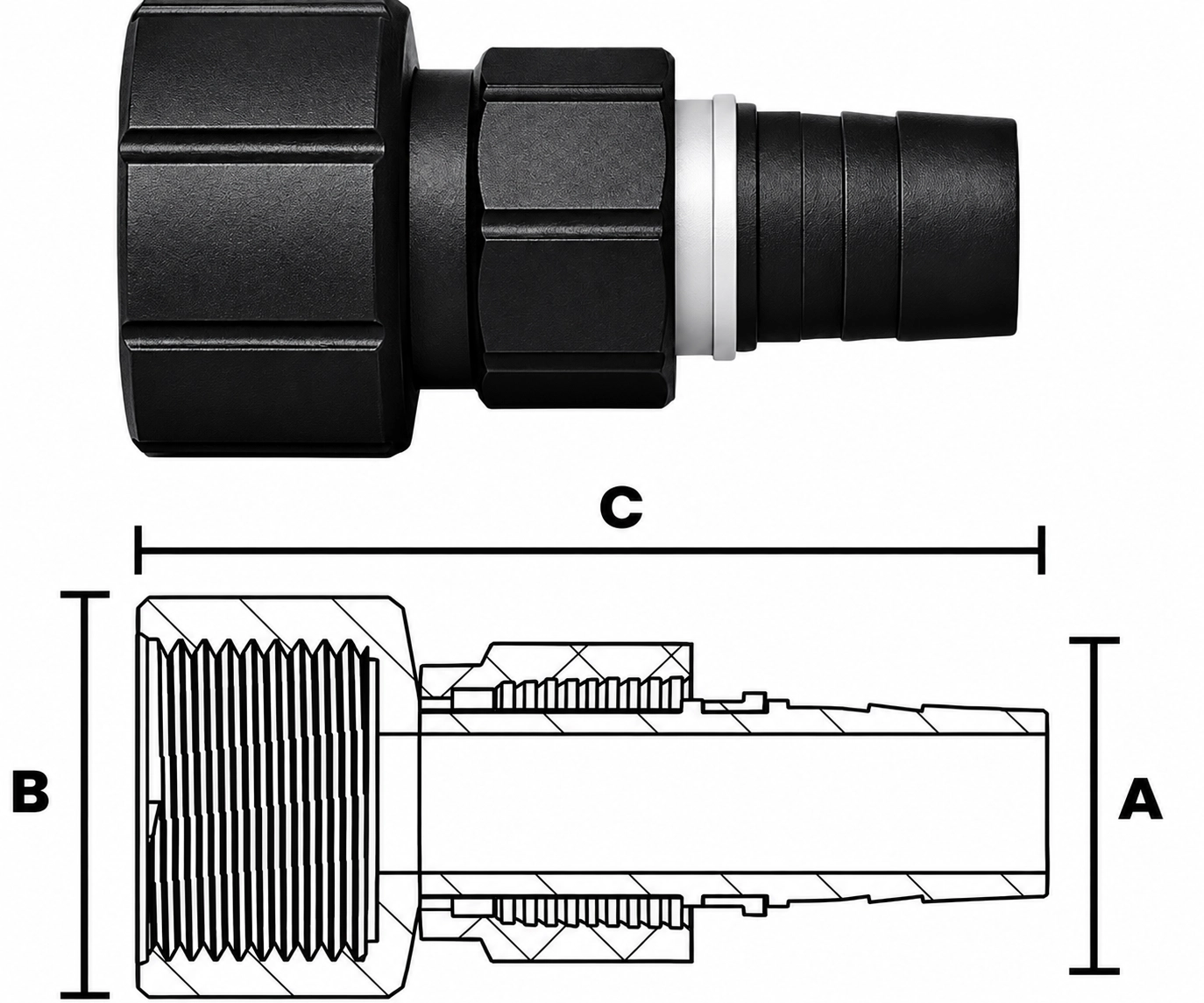

Female Thread Adaptor (BSPP Female)
| Product Code | Size | A | B | C |
|---|---|---|---|---|
| FTA-20.1/2 | 20 × ½” | 29 | 29 | 78 |
| FTA-20.3/4 | 20 × ¾” | 29 | 36 | 79 |
| FTA-25.1/2 | 25 × ½” | 32 | 29 | 80 |
| FTA-25.3/4 | 25 × ¾” | 32 | 36 | 81 |
| FTA-25.1 | 25 × 1” | 32 | 42 | 86 |
| FTA-32.3/4 | 32 × ¾” | 43 | 36 | 82 |
| FTA-32.1 | 32 × 1” | 43 | 42 | 87 |
Threaded Elbows & Tees
Male Thread Elbow (BSPT Male)
| Product Code | Size | A | B | C | D |
|---|---|---|---|---|---|
| MTE-20.1/2 | 20 × ½” | 29 | 22 | 80 | 40 |
| MTE-20.3/4 | 20 × ¾” | 29 | 28 | 80 | 41 |
| MTE-25.1/2 | 25 × ½” | 32 | 22 | 86 | 46 |
| MTE-25.3/4 | 25 × ¾” | 32 | 28 | 86 | 47 |
| MTE-25.1 | 25 × 1” | 32 | 35 | 86 | 50 |
| MTE-32.3/4 | 32 × ¾” | 43 | 28 | 93 | 53 |
| MTE-32.1 | 32 × 1” | 43 | 35 | 93 | 56 |
Female Thread Elbow (BSPP Female)
| Product Code | Size | A | B | C | D |
|---|---|---|---|---|---|
| FTE-20.1/2 | 20 × ½” | 29 | 29 | 78 | 41 |
| FTE-20.3/4 | 20 × ¾” | 29 | 36 | 78 | 43 |
| FTE-25.1/2 | 25 × ½” | 32 | 29 | 87 | 47 |
| FTE-25.3/4 | 25 × ¾” | 32 | 36 | 87 | 48 |
| FTE-25.1 | 25 × 1” | 32 | 42 | 87 | 51 |
| FTE-32.3/4 | 32 × ¾” | 43 | 36 | 93 | 54 |
| FTE-32.1 | 32 × 1” | 43 | 42 | 93 | 57 |

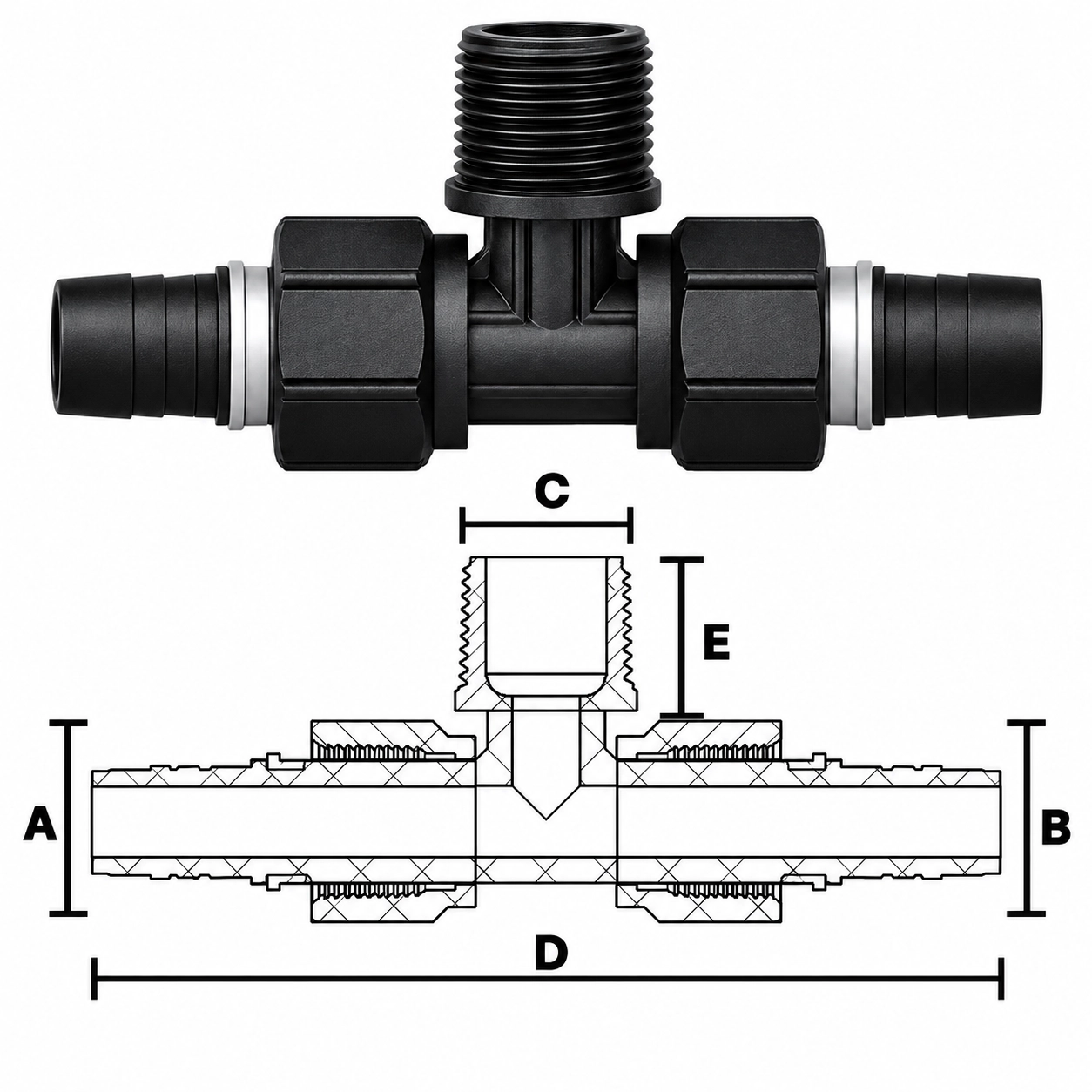

Male Thread Tee (BSPT Male)
| Product Code | Size | A | B | C | D | E |
|---|---|---|---|---|---|---|
| MTT-20.1/2 | 20 × ½” | 29 | 29 | 22 | 137 | 26 |
| MTT-20.3/4 | 20 × ¾” | 29 | 29 | 28 | 137 | 28 |
| MTT-25.1/2 | 25 × ½” | 32 | 32 | 22 | 151 | 29 |
| MTT-25.3/4 | 25 × ¾” | 32 | 32 | 28 | 151 | 31 |
| MTT-25.1 | 25 × 1” | 32 | 32 | 35 | 151 | 33 |
| MTT-32.3/4 | 32 × ¾” | 43 | 43 | 28 | 157 | 30 |
| MTT-32.1 | 32 × 1” | 43 | 43 | 35 | 157 | 32 |

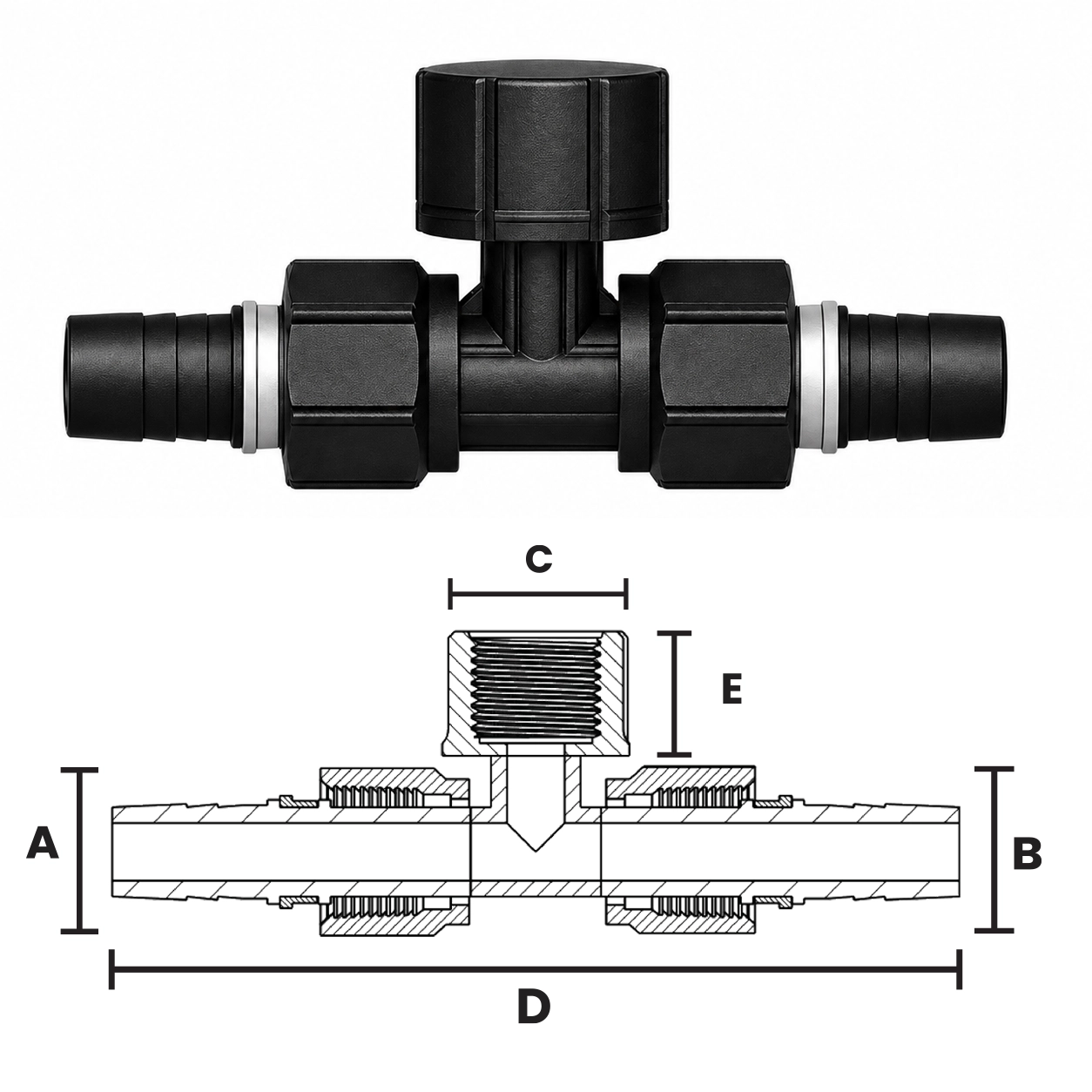

Female Thread Tee (BSPP Female)
| Product Code | Size | A | B | C | D | E |
|---|---|---|---|---|---|---|
| FTT-20.1/2 | 20 × ½” | 29 | 29 | 29 | 137 | 26 |
| FTT-20.3/4 | 20 × ¾” | 29 | 29 | 36 | 137 | 28 |
| FTT-25.1/2 | 25 × ½” | 32 | 32 | 29 | 151 | 29 |
| FTT-25.3/4 | 25 × ¾” | 32 | 32 | 36 | 151 | 31 |
| FTT-25.1 | 25 × 1” | 32 | 32 | 42 | 151 | 34 |
| FTT-32.3/4 | 32 × ¾” | 43 | 43 | 36 | 157 | 30 |
| FTT-32.1 | 32 × 1” | 43 | 43 | 42 | 157 | 33 |
Connection Components

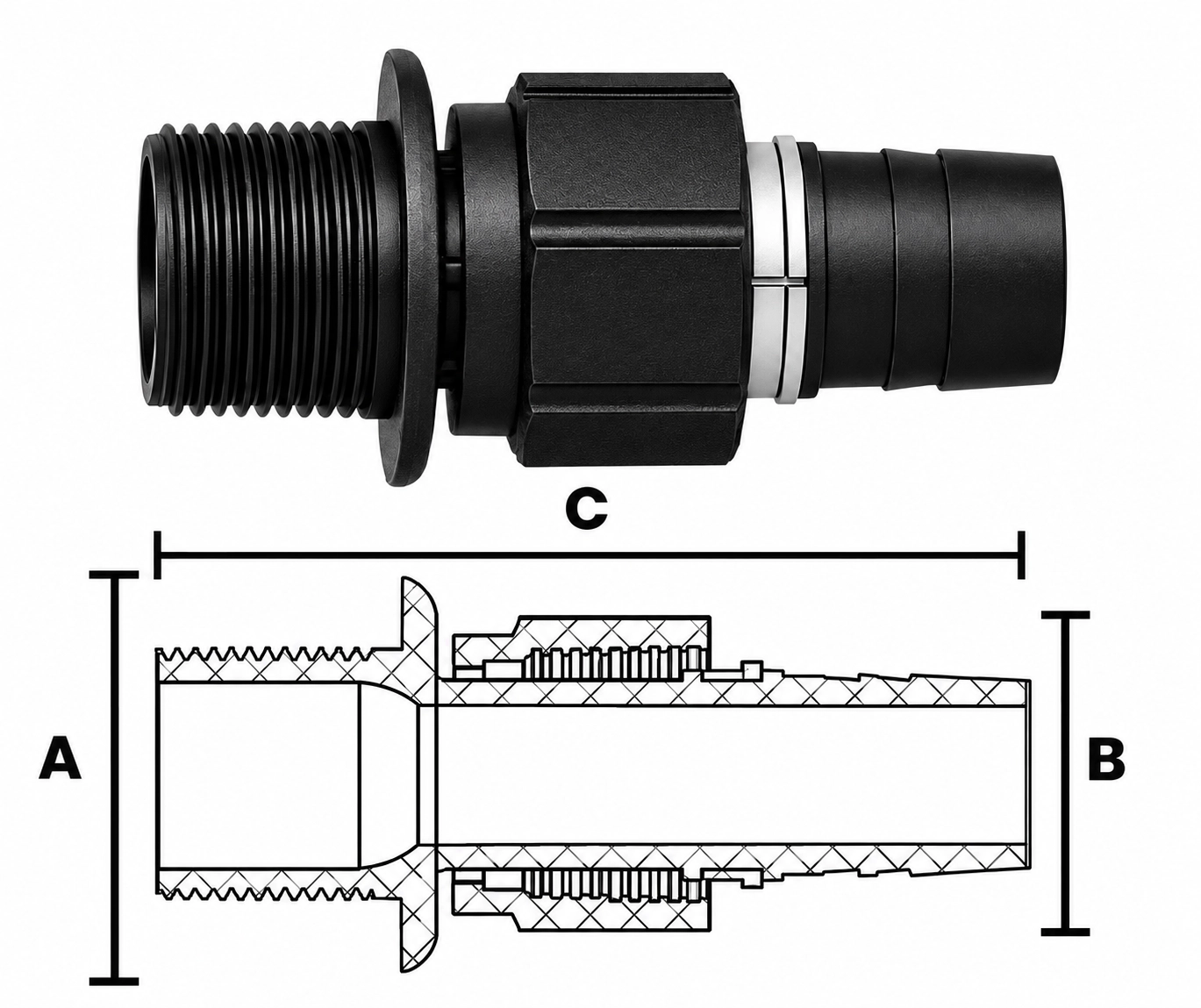

Tank Connector
| Product Code | Size | A | B | C |
|---|---|---|---|---|
| TC-25.3/4 | 25 × ¾” | 40 | 32 | 89 |
| TC-32.1 | 32 × 1” | 54 | 43 | 90 |
Equal Nipple (BSPT Male)
| Product Code | Size | A | B | C |
|---|---|---|---|---|
| EN-1/2 | ½” × ½” | 20 | 20 | 43 |
| EN-3/4 | ¾” × ¾” | 25 | 25 | 46 |
| EN-1 | 1” × 1” | 32 | 32 | 52 |

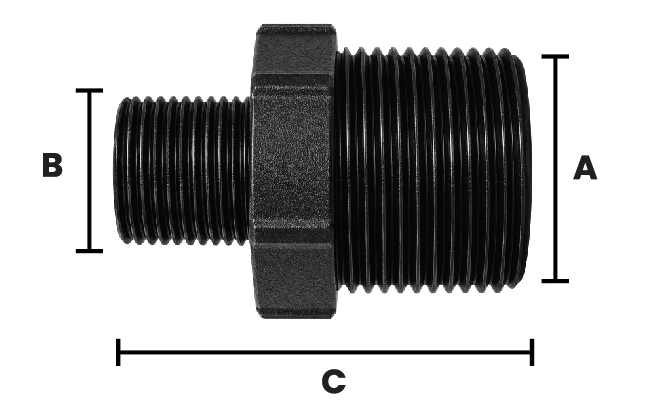

Reducing Nipple (BSPT Male)
| Product Code | Size | A | B | C |
|---|---|---|---|---|
| RN-3/4.1/2 | ¾” × ½” | 25 | 20 | 46 |
| RN-1.3/4 | 1” × ¾” | 32 | 25 | 50 |
| RN-1.1/2 | 1” × ½” | 32 | 20 | 49 |

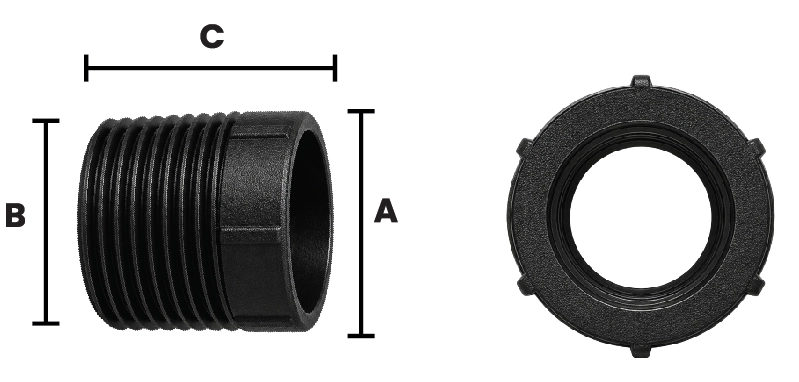

Bush (BSPT Male & BSPP Female)
| Product Code | Size | A | B | C |
|---|---|---|---|---|
| B-3/4.1/2 | ¾” × ½” | 30 | 25 | 28 |
| B-1.3/4 | 1” × ¾” | 30 | 25 | 32 |
| B-1.1/2 | 1” × ½” | 35 | 32 | 32 |
Extension Piece (BSPP)
| Product Code | Size | A | B | C |
|---|---|---|---|---|
| EP-1/2 | ½” × ½” | 31 | 25 | 61 |
| EPB-1/2 | ½” × ½” | 39 | 25 | 61 |
