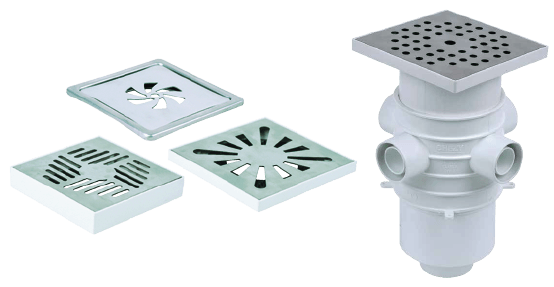

Chezy 1 Top Access Floor Trap
A top access floor trap designed for easier maintenance from the bathroom floor, with a 66mm water seal, a large 127mm collar opening and a patented body configuration for practical installation.
- Deepest Water Seal - 66mm
- Highest Flow Rate - 90 litres/min
- Best in Malaysia

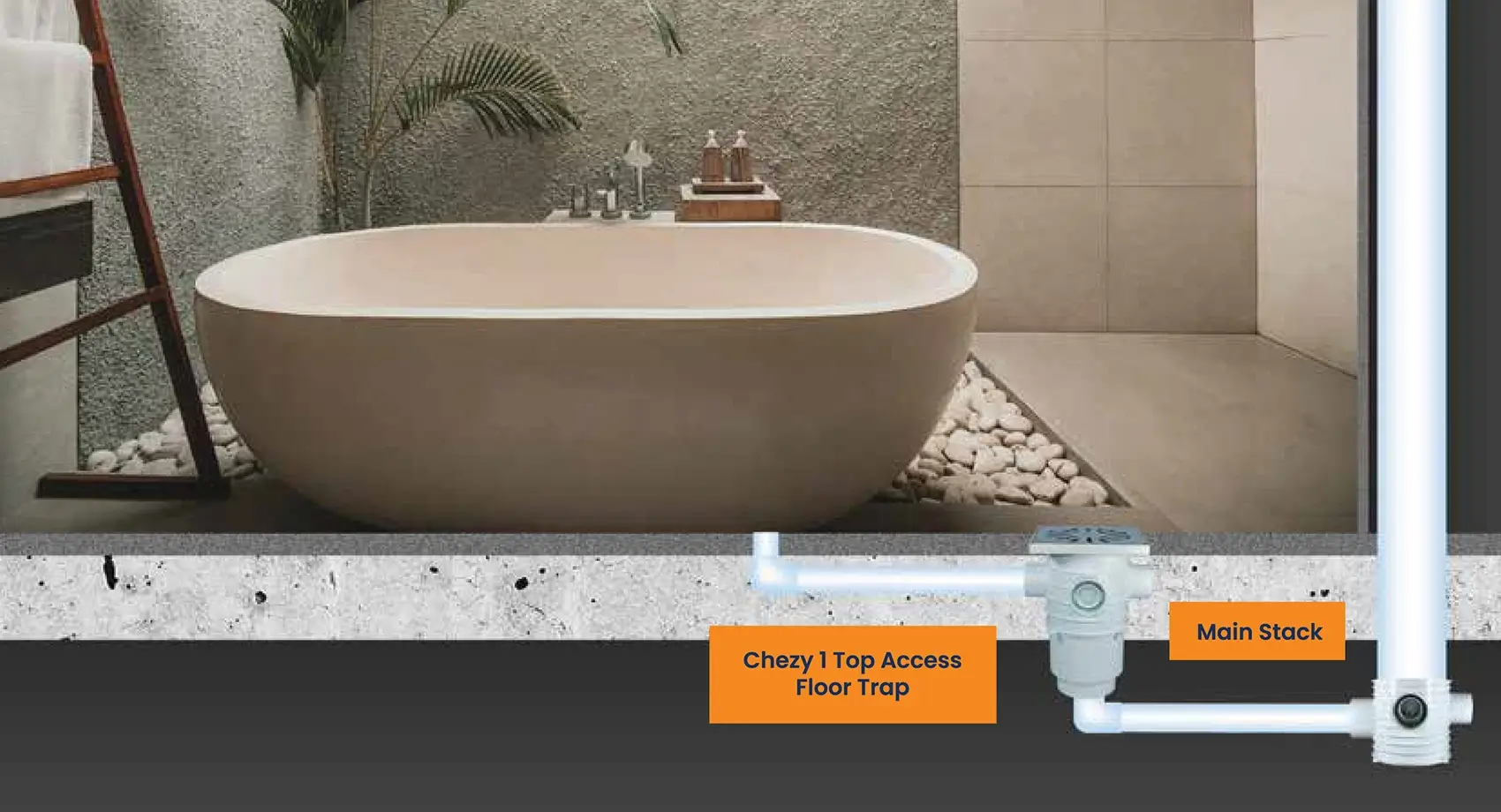

Top Access Maintenance for Bathroom Floor Traps
Floor traps are used and installed in the floor slab to remove water from the floor in areas like the bathroom, kitchen, yard and etc. Additionally, these traps incorporate a water seal to prevent ingress of foul smell, insects and rodents from the main stack.

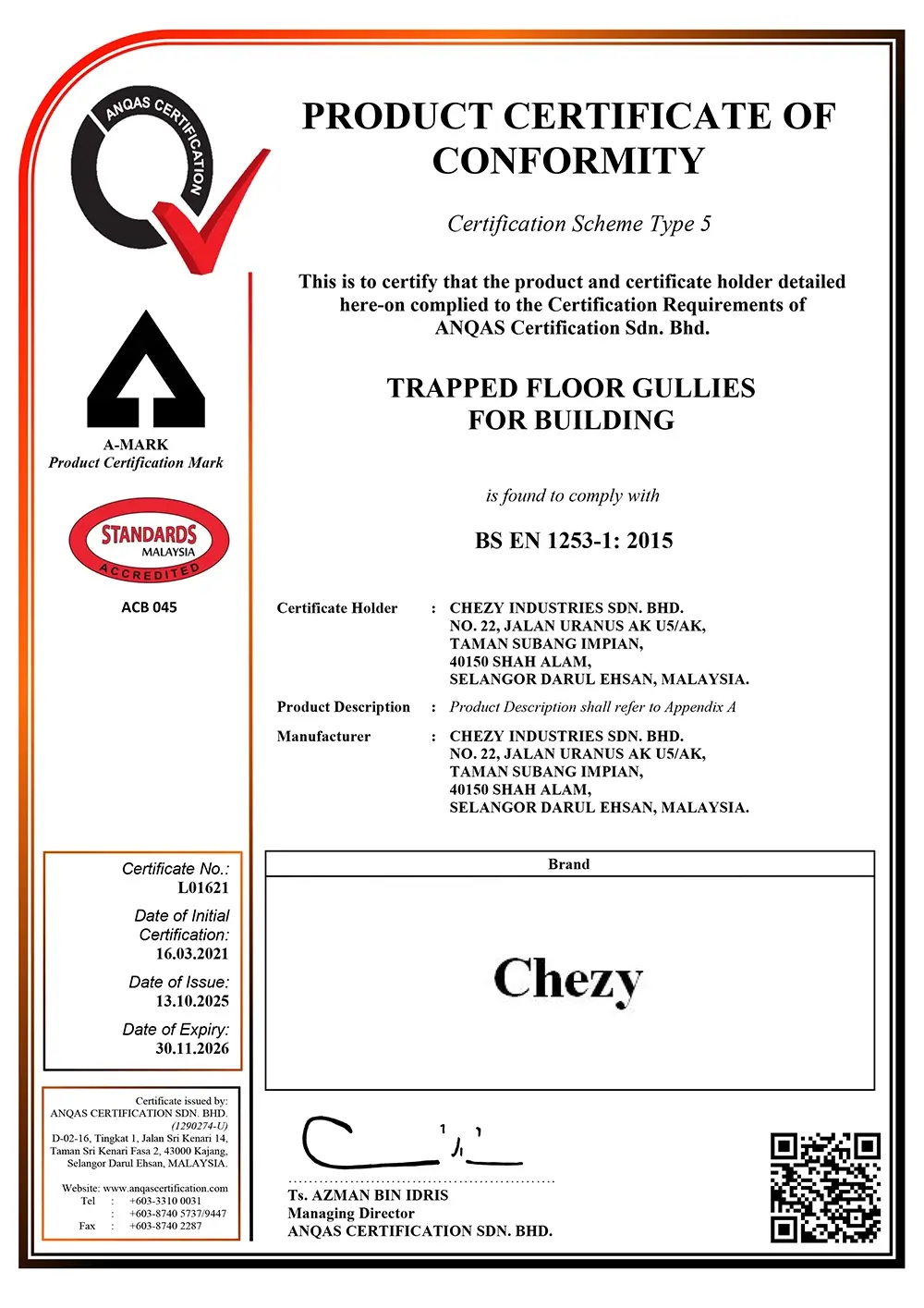

All floor traps in Malaysia are manufactured to BS EN 1253, Trapped floor gullies with a depth water seal of at least 50mm, which states that floor traps must allow a minimum flow rate of 48 litres/min through the grating and if side connections are made for basins, kitchen sinks, washing machine and etc; floor traps shall have a flow rate in excess of 80 litres/min.
Maintenance is easy and is done from the top. Remove grating and pull Bell out. This will give direct access to the outlet for rodding to clear blockages. No need to go below the slab.
For 150mm Floor Slab
Access Components Designed for Easier Servicing

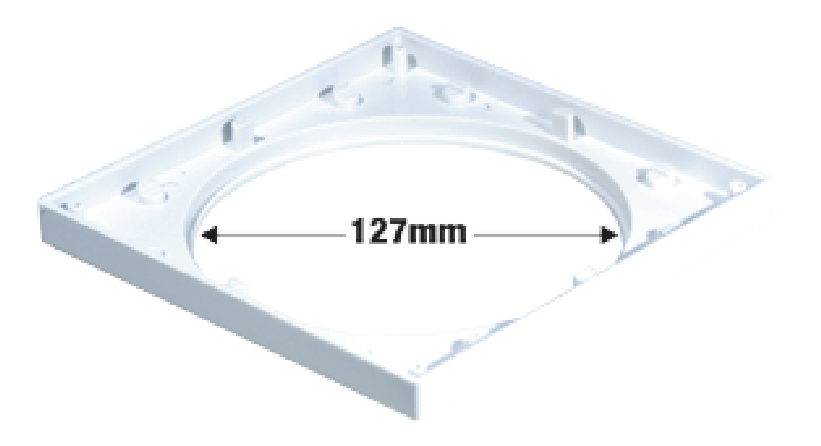

Large Opening in the Collar – 127mm
During bathroom tiling, the collar may be offset rather than perfectly centred. The catalogue explains that the 127mm opening is intended to preserve access to removable trap parts despite tile misalignment.

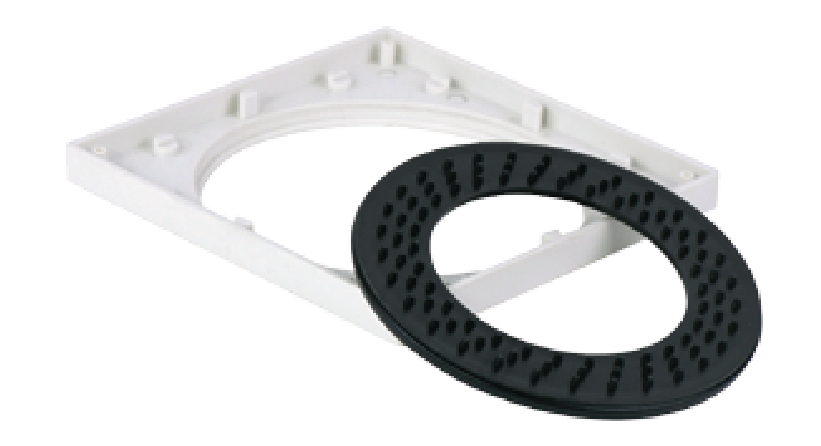

Hair Trap
The built-in hair trap is intended to collect hair before it creates a blockage. Remove the grating, take out the hair trap, clean it and place it back.

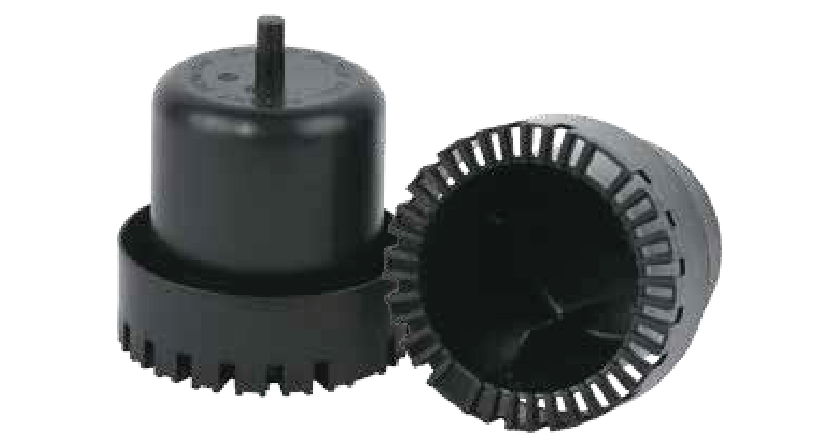

Patented One-Piece Bell & Container
The one-piece bell and container acts as a secondary filter and helps distribute water flow. The catalogue states the container prevents debris larger than 3.5mm from clogging or blocking the floor trap outlet.
Installation Flexibility for Different Pipe Gradients

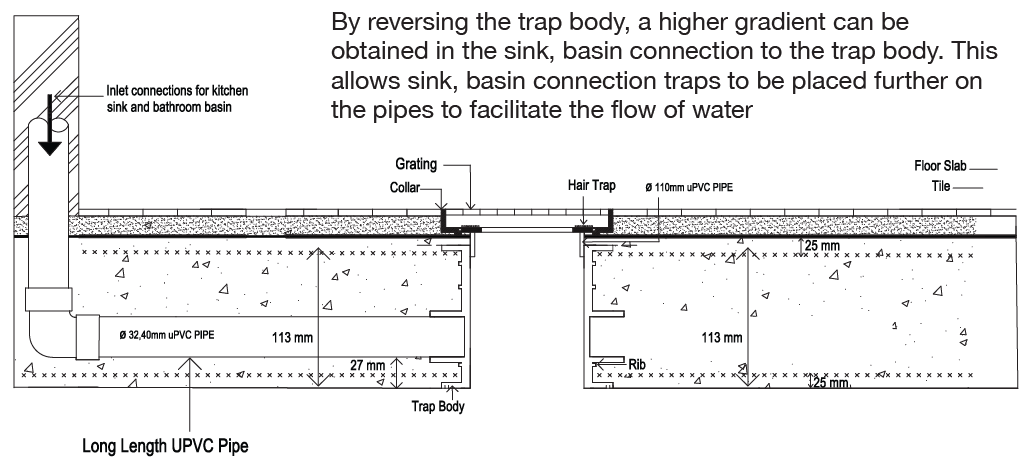

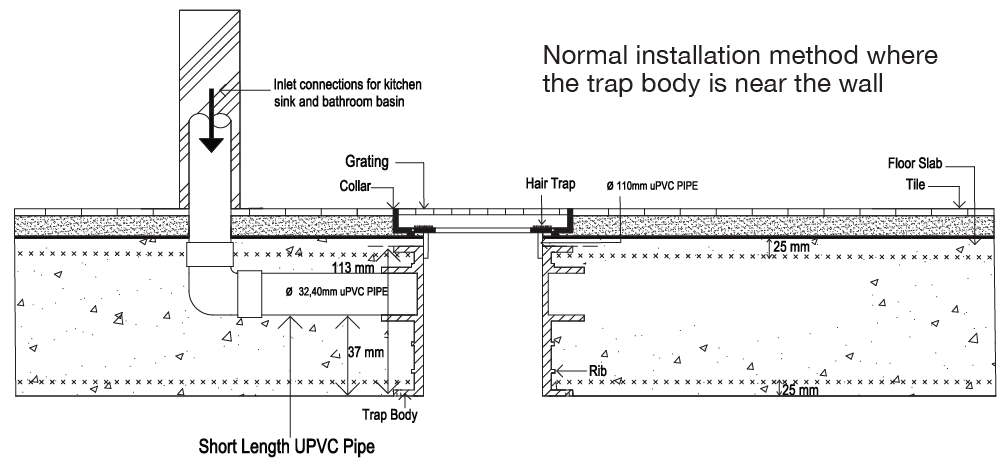

The Chezy Floor Trap Body can be nailed from either side of the body to the floor. It works to give different height to the inlet of the trap body. This facilitates by providing a greater gradient for floor traps that are further away from the wall. This provides a higher flow in the comming pipes into the body and provides ease of jointing for pipes to the floor trap body
Keep the Trap Accessible From the Finished Floor
The main reason that top access floor traps are used is that they allow maintenance of the trap from the bathroom. These top access floor traps are placed in the floor slab. The distance of the floor trap is close to the grating, hence it is easy to service the floor trap and clear any blockages that may occur in the outlet pipes, from the top itself, without going below the floor slab.

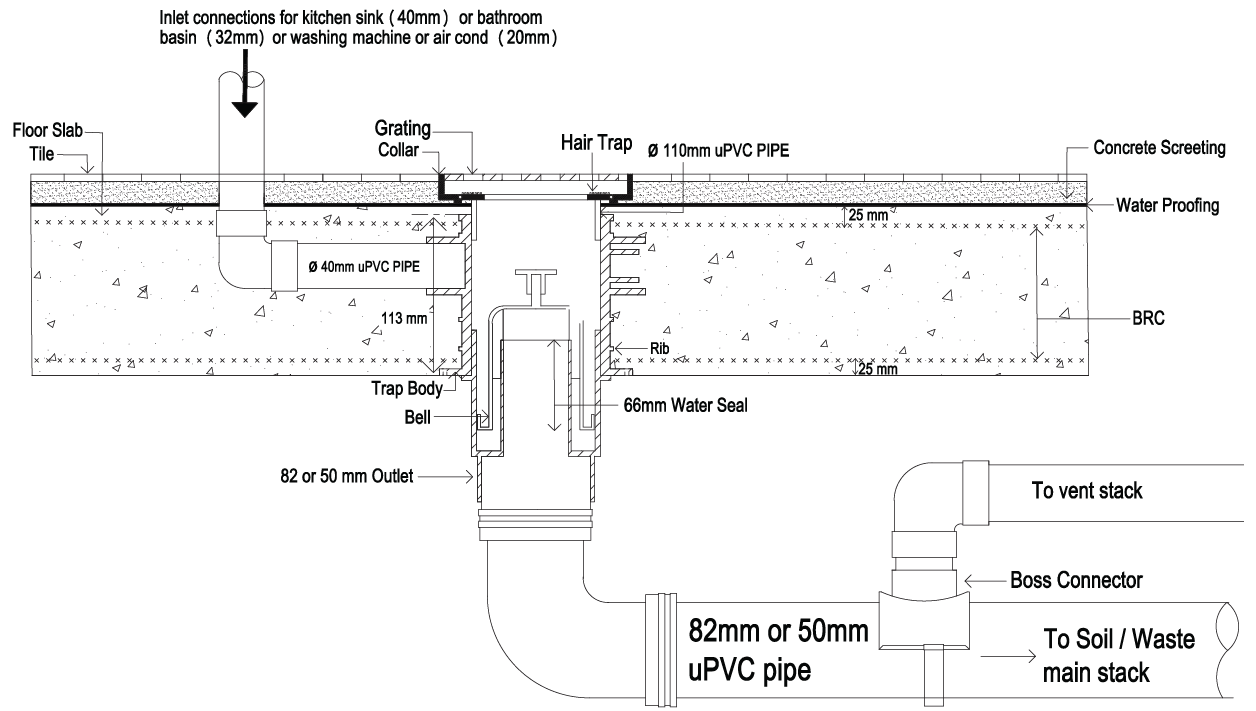

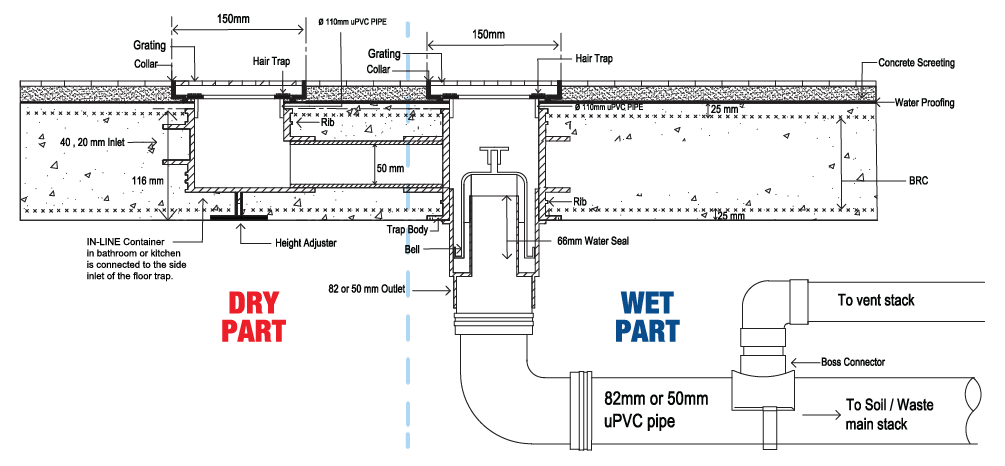

Installation Drawing
Top Access Floor Trap with Chezy In-Line Container

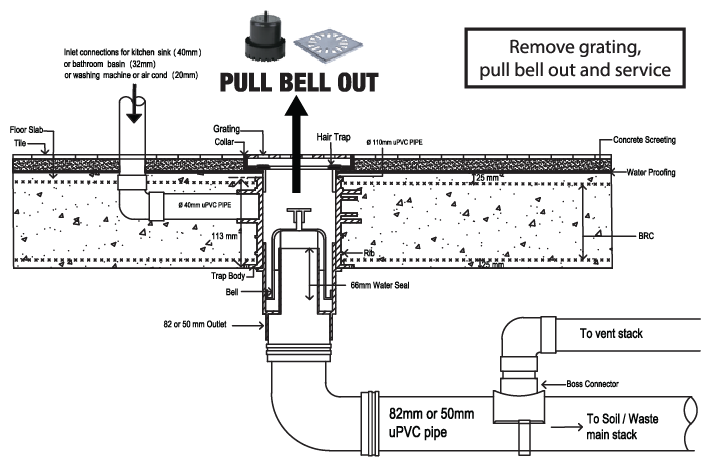

Installation & Maintenance Drawing
Top Access Floor Trap for 150mm Floor Slab
66mm Water Seal with High-Flow Positioning
Floor Trap With The Deepest Water Seal - 66mm
The Chezy Floor Trap has the deepest water seal of all floor traps available in the country. This means that the evaporation of the water seal will last the longest in Malaysia for Top Access Floor Traps as a result of non-usage of the floor trap. Loss of the water seal can result in foul smell and insects entering the bathroom. The water seal in our floor traps will out last any top access systems in the country.
Why Chezy Top Access Floor Trap ?
Apart from the flair, aesthetics and architecturally pleasing gratings of the Chezy Top Access Floor Traps – The developers, architects, consultants and house owners receive the best functional and great additional benefits for any problems that may arise. We have solutions for any problems that may occur.
Maintenance Guide

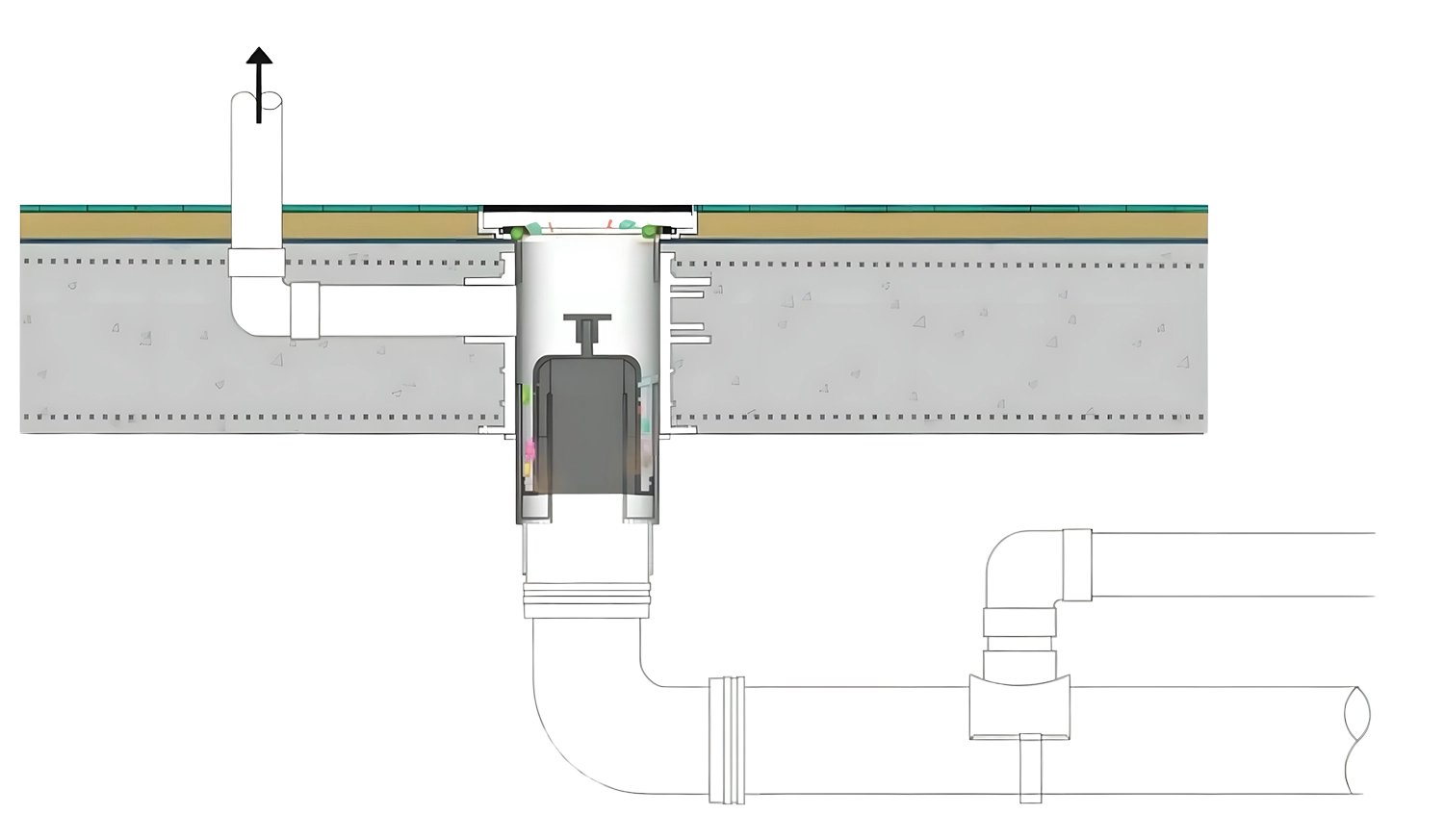

Figure 1: Cross section view of Floor Trap in Slab
Maintenance Steps
- Remove the grating and hair trap from the collar.
- Clean the hair trap by removing trapped hair and dirt.
- Remove the bell from the body of the trap.
- Remove any hair and dirt caught by the bell.
- Pour water into the trap to flush out any dirt, etc.
- Replace bell into the trap body. Ensure that the bell sits firmly in the body.
- Replace cleaned hair trap into the collar.
- Finish the maintenance of the top access floor trap by replacing the grating.
Please Scan The QR To View The Maintenance Animated Video
